Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE REAR SEAT CUSHION ASSEMBLY
    Refer to PROCEDURE - Step 2
  3. REMOVE NO. 1 CENTER CONSOLE SILENCER

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR SEATBACK ASSEMBLY
    Refer to PROCEDURE - Step 4
  5. REMOVE FRONT DOOR SCUFF PLATE RH

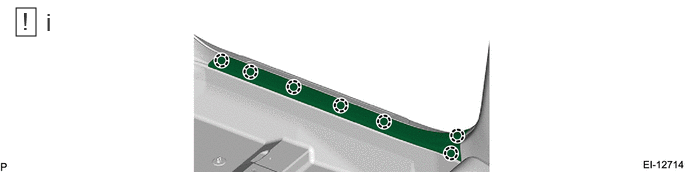

    1. GTY1050703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the claws, and then remove the front door scuff plate RH.
        NOTE:

        Do not pull with excessive force. Claws of the front door scuff plate RH may be damaged.

  6. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Use the same procedure as for the RH side.

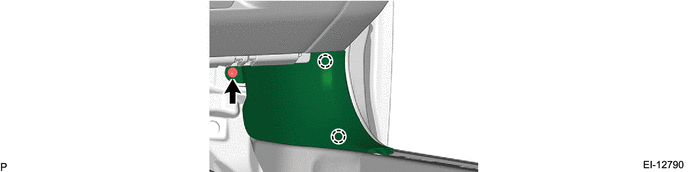

  7. REMOVE COWL SIDE TRIM BOARD RH
    1. GTY1052137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE COWL SIDE TRIM BOARD LH
    1. Use the same procedure as for the RH side.

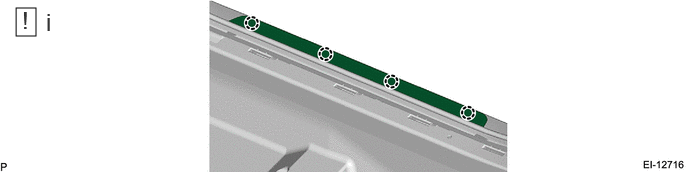

  9. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH
    1. GTY1050929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the claws, and then remove the front door scuff plate outside RH.
        NOTE:

        Do not pull with excessive force. Claws of the front door scuff plate outside RH may be damaged.

  10. REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Use the same procedure as for the RH side.
  11. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Use the same procedure as for the LH side.
  13. REMOVE FRONT PILLAR GARNISH RH
    1. Pull the front pillar garnish RH towards the center of the vehicle.

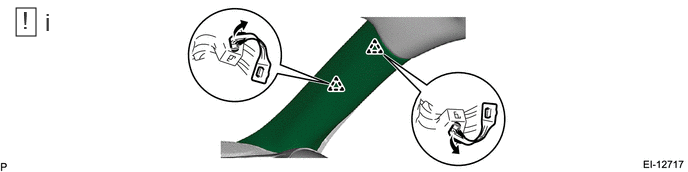

    2. GTY1049966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the hook at the end of the front pillar garnish clip, and remove the front pillar garnish RH.
        NOTE:
        • Do not use any tool when releasing the hook at the end of the front pillar garnish RH.
        • Be careful not to damage the front pillar garnish RH surface and curtain airbag module.
  14. REMOVE FRONT PILLAR GARNISH LH
    1. Use the same procedure as for the RH side.
  15. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
    1. Remove the luggage compartment floor mat.

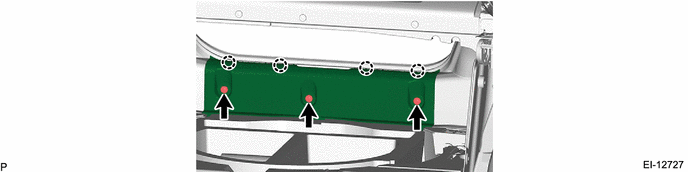

  16. REMOVE REAR FLOOR FINISH PLATE
    1. GTY1050755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

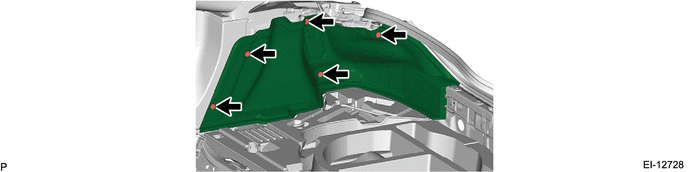

  17. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH
    1. GTY1049597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH
    1. Use the same procedure as for the RH side.
  19. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
    1. Tilt the front seat backrest assembly forward, and move the front seat all the way forward.

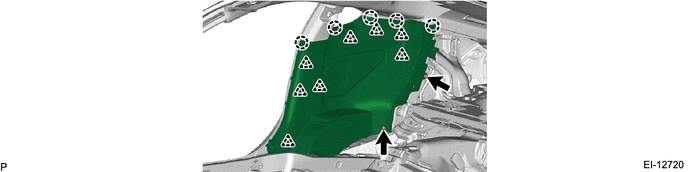

    2. GTY1049626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
    1. Use the same procedure as for the RH side.
  21. REMOVE QUARTER TRIM LID SUB-ASSEMBLY RH

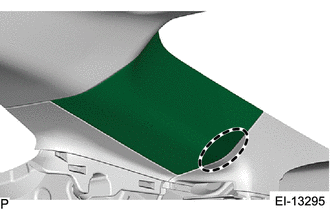

    NOTE:

    When removing the quarter trim lid sub-assembly RH, do not remove the part by holding the area (a). There is a possibility of the clip seat area coming off.

    GTY1160513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Area (a)

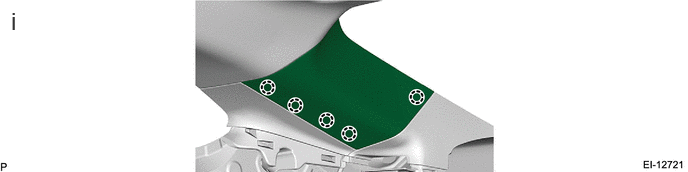

    1. GTY1049535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the claws.

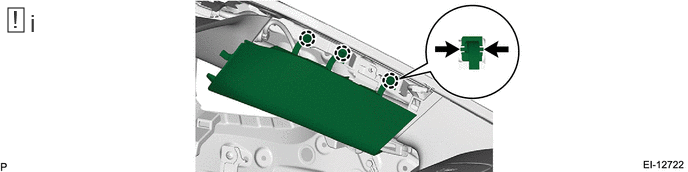

    2. GTY1050084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the claws, and then remove the tether clips and quarter trim lid sub-assembly RH as a unit.
  22. REMOVE QUARTER TRIM LID SUB-ASSEMBLY LH
    1. Use the same procedure as for the RH side.
  23. REMOVE REAR WINDOW SIDE GARNISH RH

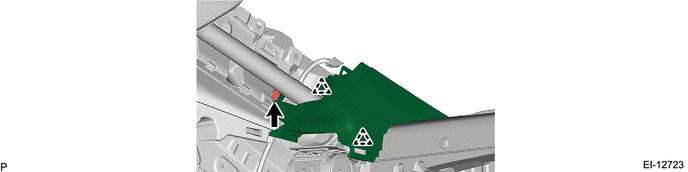

    1. GTY1050751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR WINDOW SIDE GARNISH LH
    1. Use the same procedure as for the RH side.
  25. REMOVE REAR QUARTER TRIM GARNISH FRONT RH

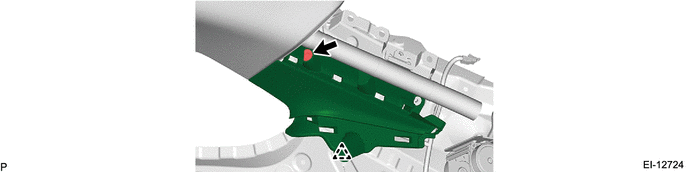

    1. GTY1049588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR QUARTER TRIM GARNISH FRONT LH
    1. Use the same procedure as for the RH side.
  27. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  28. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Use the same procedure as for the RH side.

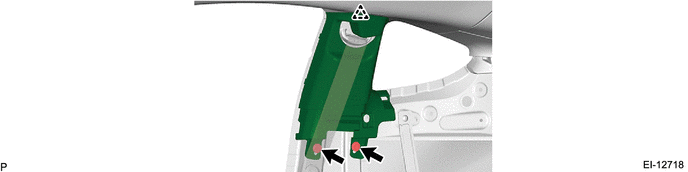

  29. REMOVE CENTER PILLAR GARNISH RH
    1. GTY1050761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE CENTER PILLAR GARNISH LH
    1. Use the same procedure as for the RH side.
  31. REMOVE VISOR ASSEMBLY RH

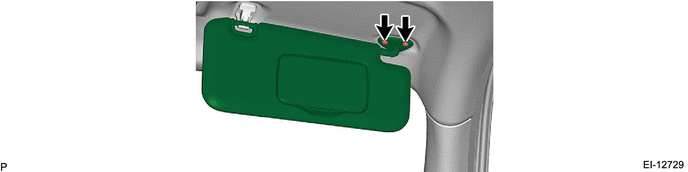

    1. GTY1049609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Vanity Mirror Light:
      1. Disconnect the connector.
  32. REMOVE VISOR ASSEMBLY LH
    1. Use the same procedure as for the RH side.

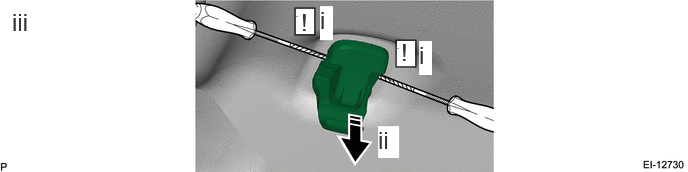

  33. REMOVE VISOR HOLDER
    1. GTY1050624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Push both sides using a flat tip screwdriver, etc. wrapped with protection tape.
      2. Remove the visor holder by pulling it in the arrow direction.
      3. Use the same procedure for the LH side and RH side.
  34. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/o EyeSight)

    Refer to PROCEDURE - Step 3

  35. REMOVE MAP LIGHT ASSEMBLY (w/o EyeSight)

    Refer to PROCEDURE - Step 4

  36. REMOVE MAP LIGHT ASSEMBLY (w/ EyeSight)
    Refer to PROCEDURE - Step 3
  37. REMOVE ROOF HEADLINING ASSEMBLY
    1. Remove the harness clips of the No. 2 antenna cord sub-assembly and the No. 1 roof wire, and disconnect the connectors.

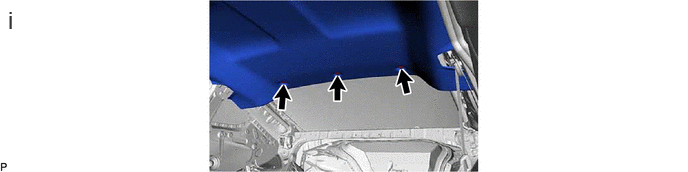

    2. GTY1047447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the clips.

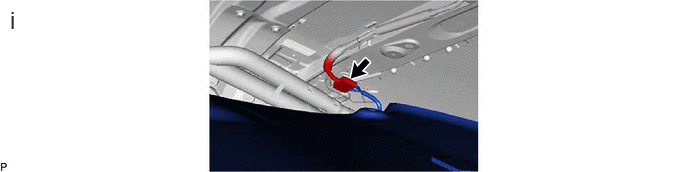

    3. GTY1047197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.

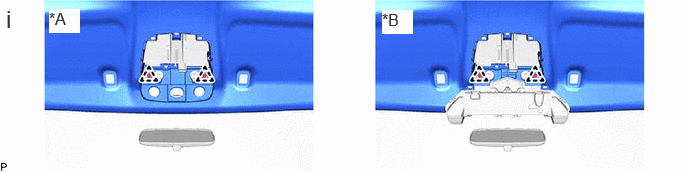

    4. GTY1046818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o EyeSight *B w/ EyeSight
      1. Disengage the clips.

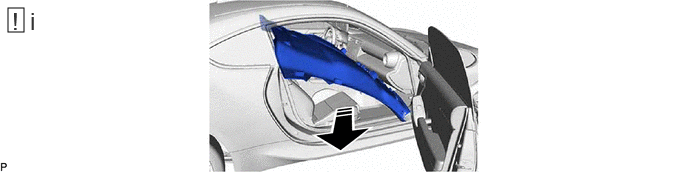

    5. GTY1046838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.
        NOTE:

        Do not damage the roof headlining assembly or body interior.
