Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE REAR SEAT CUSHION ASSEMBLY

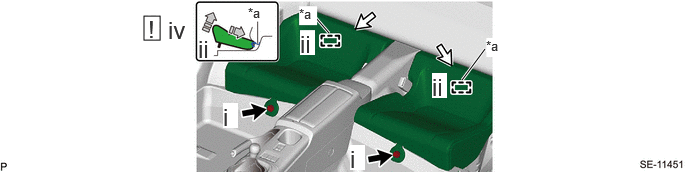

    1. GTY1050446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a HOOK - -
      1. Remove the 2 bolts.
      2. Remove the hook (a) by pushing it back while lifting the front side of the rear seat cushion assembly.
      3. Disconnect each connector.
      4. Remove the rear seat cushion assembly.
        NOTE:

        Be careful not to damage the vehicle when taking out the seat from the vehicle.

  3. REMOVE NO. 1 CENTER CONSOLE SILENCER

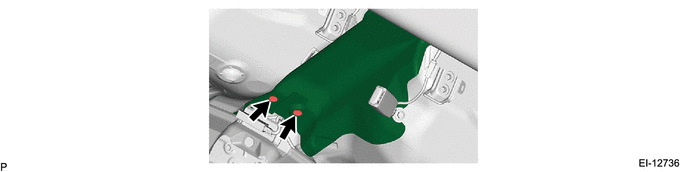

    1. GTY1051478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEATBACK ASSEMBLY
    1. GTY1050428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1050135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and remove the rear seatback assembly.
        NOTE:

        Be careful not to damage the vehicle when taking out the seat from the vehicle.

  5. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

  7. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 7

  8. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

  9. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 12

  10. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure as for the RH side.

  11. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH

    Refer to PROCEDURE - Step 17

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH

    HINT:

    Use the same procedure as for the RH side.

  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 19

  14. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    HINT:

    Use the same procedure as for the RH side.

  15. REMOVE REAR WINDOW SIDE GARNISH RH

    Refer to PROCEDURE - Step 23

  16. REMOVE REAR WINDOW SIDE GARNISH LH

    HINT:

    Use the same procedure as for the RH side.

  17. REMOVE REAR SEAT HINGE SUB-ASSEMBLY RH

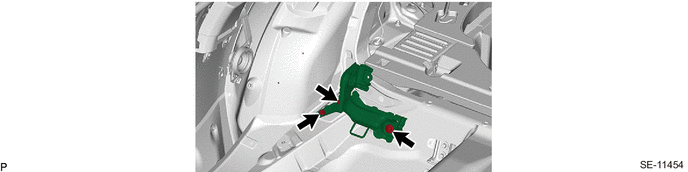

    1. GTY1050440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SEAT HINGE SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

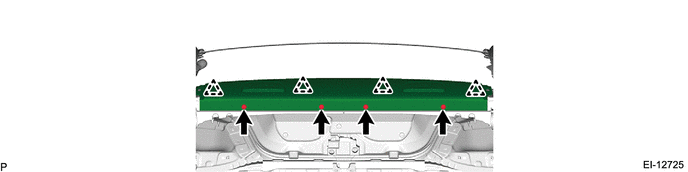

    1. GTY1049586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEATBACK PLATE UPPER RH

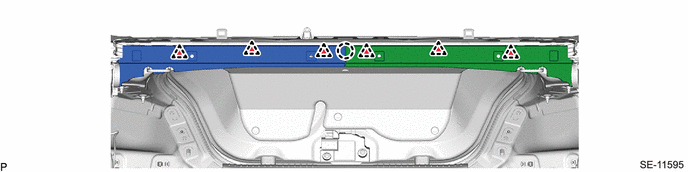

    1. GTY1050394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR SEATBACK PLATE UPPER LH
  22. REMOVE REAR SEATBACK LOOK STRIKER SUB-ASSEMBLY RH

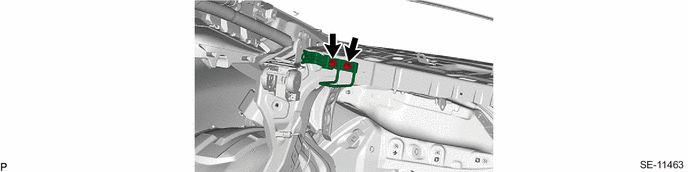

    1. GTY1050441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR SEATBACK LOOK STRIKER SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.
