Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. REMOVE MAP LIGHT ASSEMBLY (w/ EyeSight)
    Refer to PROCEDURE - Step 3
  3. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/o EyeSight)

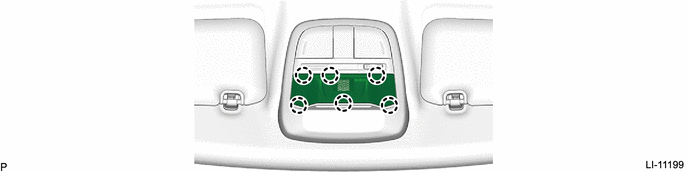

    1. GTY1049275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE MAP LIGHT ASSEMBLY (w/o EyeSight)

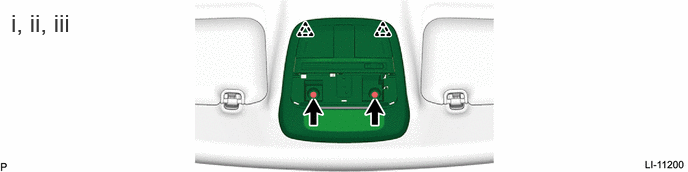

    1. GTY1048636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws.
      2. Remove the 2 clips.
      3. Disconnect the connector to remove the map light assembly.
