Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    Power windows have an index function that slightly opens/closes window glass when a door is opened/closed. The molding may be damaged when the doors are opened or closed after disconnecting the ground terminal from the battery state sensor assembly when the glass is completely closed. Therefore, always disconnect the ground terminal from the battery state sensor assembly with the driver's or passenger's seat door open (with the glass lowered to a position that allows free door opening and closing).

    HINT: Open the trunk as necessary before disconnecting the ground terminal from the battery state sensor assembly.

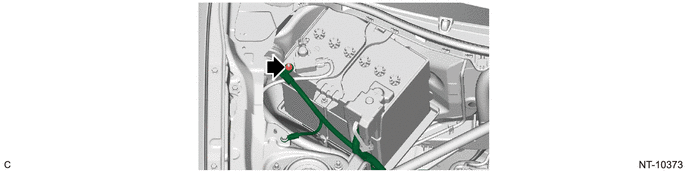

    1. GTY1050512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY STATE SENSOR ASSEMBLY
    1. When the battery is not replaced:
      GTY1050083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the battery state sensor assembly connector.
    2. When replacing the battery:

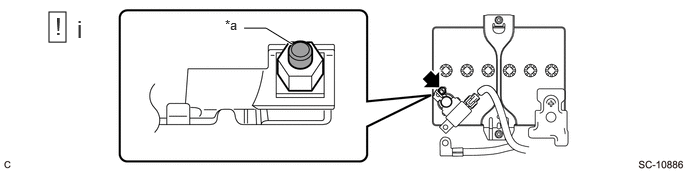

      GTY1049497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Crimped Portion - -
      1. Loosen the nut and disconnect the battery state sensor assembly from the battery.
        NOTE:

        The end of the bolt of the battery state sensor assembly is crimped. Therefore, do not loosen the nut to the crimped portion.

  3. DISCONNECT CABLE FROM POSITIVE BATTERY TERMINAL

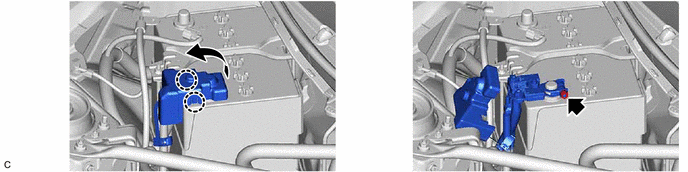

    1. GTY1046984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BATTERY CLAMP SUB-ASSEMBLY
    1. GTY1050494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BATTERY

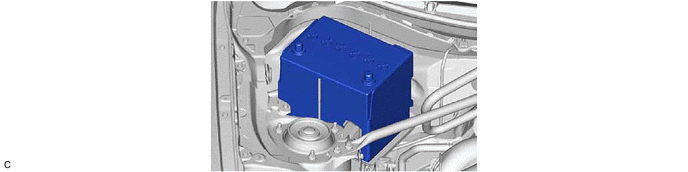

    1. GTY1046898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
