Removal [11/2021 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 5

  2. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 7

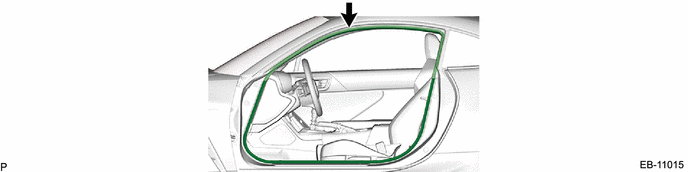

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. GTY1052254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

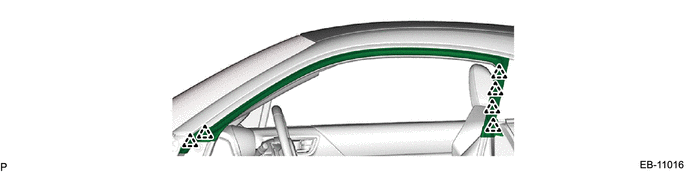

  4. REMOVE NO. 2 FRONT DOOR WEATHERSTRIP LH
    1. GTY1051883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
