Removal [11/2021 - ]: Procedure

PRECAUTION

NOTE:

Refer to "PRECAUTION" before handling the airbag system components.
Refer to PRECAUTION [11/2021 - ]
Do not allow harness and connectors to interfere or get tangled up with other parts.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

WARNING:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If an airbag deploys for any reason, it may cause a serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR SEAT CUSHION ASSEMBLY

Refer to PROCEDURE - Step 2
REMOVE REAR SEATBACK ASSEMBLY

Refer to PROCEDURE - Step 4
REMOVE FRONT DOOR SCUFF PLATE RH

Refer to PROCEDURE - Step 5
REMOVE COWL SIDE TRIM BOARD RH
Refer to PROCEDURE - Step 7
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
1. Disconnect the front door opening trim weatherstrip RH.
REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH
Refer to PROCEDURE - Step 17
REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 19

DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH

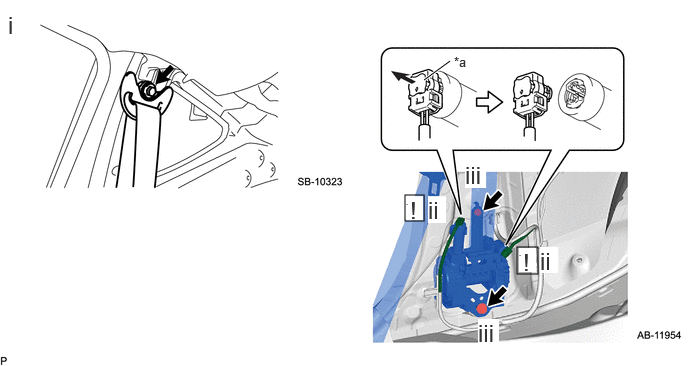

Locking Button

Remove the anchor bolts of seat belts.
Disconnect connector of the pretensioner.
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2021 - ]
Remove the 2 bolts, and then remove the front seat outer belt assembly RH.
