Removal [09/2021 - 11/2023]: Procedure

  1. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

    Refer to REMOVAL [09/2021 - 11/2023]

  2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

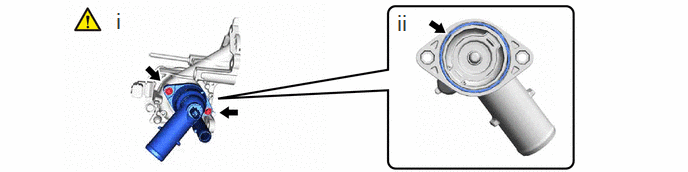

    1. GTY1030154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.
      2. Remove the gasket from the water inlet with thermostat sub-assembly.
