Removal [09/2021 - ]: Procedure

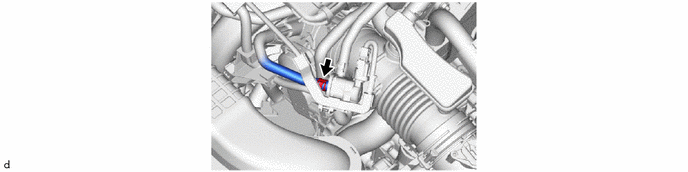

  1. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. GTY1029728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

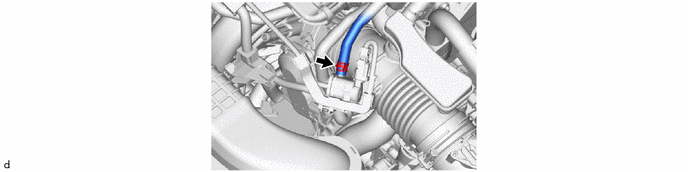

  2. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. GTY1029729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

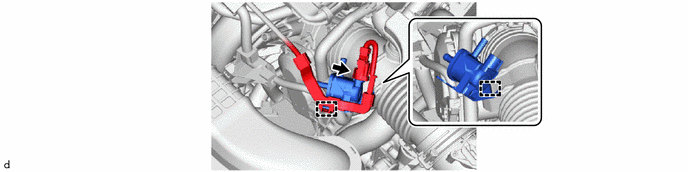

  3. REMOVE PURGE VALVE (PURGE VSV)
    1. GTY1030540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
