Removal [07/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to REPLACEMENT [03/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [07/2020 - ]

  3. REMOVE OIL FILLER CAP ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE OIL PAN DRAIN PLUG

    Refer to PROCEDURE - Step 4

  5. INSTALL OIL PAN DRAIN PLUG

    Refer to PROCEDURE - Step 5

  6. REMOVE AND INSTALL HOOD SUPPORT ASSEMBLY
    WARNING:
    • Shutting bonnet or tailgate.

      Danger of injury!

      • Support hood sub-assembly/tailgate in fully open position with the aid of a suitable device.
    1. Lift clamp (3) slightly using a screwdriver, in the direction of the arrow.
      GTY899592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift off ball socket (1) from ball pin (2).
    3. Repeat the operation on the other side of vehicle.

      HINT:

      Conduct the following operation with the assistance of a second person.

    4. Remove the hood support assembly and open the hood sub-assembly further.
      GTY899615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Push special tool 0 493 647 (51 2 170) (3) over gas pressure spring (1).
      • SST: 09800-WA030
    6. Position the special tool 0 493 647 (51 2 170) on the ball pin (2) and apply force to engage it.
      • SST: 09800-WA030
    7. Repeat the operation on the other side of vehicle.
  7. REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  8. REMOVE HOOD TO COWL TOP SEAL
    1. Feed the cable out from the brackets to the front in the marked area.
      GTY945554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hood to cowl top seal (1) inward from the guide.
  9. REMOVE UPPER FRONT SUSPENSION CENTER BRACE
    NOTE:

    Driving without upper front suspension center brace is not permissible.

    1. Remove E14 bolts (1) and bolts (2).
      GTY899603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the upper front suspension center brace (3).
  10. REMOVE COWL TOP VENTILATOR LOUVER PROTECTOR
    1. Loosen bolts (1).
      GTY899602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the cowl top ventilator louver protector (2).
  11. REMOVE NO. 2 COWL TOP VENTILATOR LOUVER PROTECTOR
    1. Loosen bolts and nut (1).
      GTY899595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 cowl top ventilator louver protector (2).
  12. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    NOTE:
    • Damage to the No. 1 engine cover sub-assembly.

      Jerky movements during disassembly and excessive application of force during installation may result in breakage of the No. 1 engine cover sub-assembly.

      • Disassemble or mount the No. 1 engine cover sub-assembly carefully.
      • Disassemble or mount snap-lock couplings of the ball pivots one after the other.
      • Disassemble or mount No. 1 engine cover sub-assembly only at temperatures >20 °C.

        Vehicle information / Control unit list / DME / Call up control unit functions / Diagnostic request / Diagnostic request / 117 Ambient temperature

      • Use only distilled water as an auxiliary material during installation, no lubricants.
    1. Unclip the No. 1 engine cover sub-assembly (1) from the holders in the indicated area towards the top.
      GTY994861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR CYLINDER BLOCK COVER
    1. Unclip the rear cylinder block cover (1) at the grommets (2) and remove it toward the top.
      GTY994718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE POSITIVE BATTERY CABLE
    1. Unlock the locks (1).
      GTY946411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Guide and remove cover (2) in direction of arrow.
    3. Unfasten nut (1).
      GTY946446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Loosen clamp (2).
    5. Feed out generator wire (3) and put to one side.
    6. Unfasten nut (1).
      GTY946455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Loosen clamps (2).
    8. Feed out starter wire (3) and put to one side.
  15. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Unclip the lines in the marked areas.
      GTY946087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen E8 screws (1).
    3. Remove wire harness clamp bracket (2) for the generator wire.
  16. REMOVE NO. 1 INTEGRATION RELAY

    Refer to REMOVAL [07/2020 - ]

  17. REMOVE ENGINE ROOM ECM BOX
    1. Unlock and loosen locks (1) and (2).
      GTY946387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the wiring harnesses from the engine room ECM box and set it aside.
    3. Unlock plug connection (1) and disconnect.
      GTY909256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Unlock and loosen the 3 clamps (marks).
      GTY941847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Loosen bolts (1).
      GTY946386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Guide out and remove the engine room ECM box (2).
  18. REMOVE FLOOR WIRE
    1. Unclip floor wire (1) for the voltage supply of the power distribution box in the marked area.
      GTY946075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set aside the floor wire (1) for the voltage supply of the power distribution box.
  19. DISCONNECT CONNECTOR TO BRAKE BOOSTER TUBE
    1. Unlock, disconnect and tie the connector to brake booster tube (1) to one side.
      GTY946077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. Disengage the clamp.
      GTY946083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unlock, disconnect and tie the No. 2 fuel vapor feed hose (1) to one side.
  21. REMOVE FRONT FENDER UPPER PROTECTOR LH

    Refer to PROCEDURE - Step 5

  22. REMOVE FRONT FENDER UPPER PROTECTOR RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  24. REMOVE AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 3

  26. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  27. REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  28. REMOVE NO. 2 AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  29. REMOVE CYLINDER BLOCK COVER

    Refer to REMOVAL [07/2020 - ]

  30. REMOVE FRONT SUSPENSION MEMBER LOWER PROTECTOR

    Refer to REMOVAL [03/2019 - ]

  31. DRAIN ENGINE COOLANT (for Low Temperature)

    Refer to REPLACEMENT [07/2020 - ]

  32. DRAIN ENGINE COOLANT (for High Temperature)

    Refer to REPLACEMENT [07/2020 - ]

  33. REMOVE NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 4

  34. DISCONNECT WATER HOSE

    HINT:

    Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

    1. Unlock, disconnect and tie the No. 1 radiator hose (1) and (2) to one side.
      GTY994833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unlock, disconnect and tie the heater water hose (1) and No. 1 water by-pass hose (2) to one side.
      GTY994815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Unlock and disconnect the No. 5 water by-pass hose (3) in the marked area.
    4. Unclip the No. 5 water by-pass hose (3) in the marked area.
    5. Unlock, disconnect and tie the radiator reserve tank hose (4) in the marked area to one side.
    6. Unlock, disconnect and tie the No. 7 water by-pass hose and No. 6 radiator hose (1) to one side.
      GTY994724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE STARTER ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  36. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  37. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 2 [03/2019 - 07/2022] , or refer to PROCEDURE - Step 2 [07/2022 - ]

  38. REMOVE FRONT FLOOR COVER RH

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 5 [03/2019 - 07/2022] , or refer to PROCEDURE - Step 7 [07/2022 - ]

  40. REMOVE FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 20

  41. REMOVE REAR ENGINE MOUNTING MEMBER

    Refer to PROCEDURE - Step 21

  42. SEPARATE PROPELLER SHAFT ASSEMBLY

    Refer to REMOVAL [03/2019 - 07/2022] , or refer to REMOVAL [07/2022 - ]

  43. REMOVE NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 26

  44. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

    Refer to PROCEDURE - Step 35

  45. SEPARATE OIL COOLER TUBE
    1. Loosen T25 screw (1).
      GTY946468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the No. 1 automatic transmission oil cooler tube clamp (2).
    3. Tie the oil cooler tube to the side.
  46. REMOVE AIR CONDITIONING TUBE ASSEMBLY
    1. Loosen T45 bolts (1).
      GTY995161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove air conditioning tube assembly (2) upwards.
  47. REMOVE SUCTION PIPE SUB-ASSEMBLY
    1. Loosen T45 bolts (1).
      GTY995167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove suction pipe sub-assembly (2) upwards.
  48. REMOVE ENGINE ASSEMBLY
    WARNING:
    • Components connected to the engine joint or cross member.

      Danger of injury!

      • Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
      • Attach the component to correctly mounted engine joints or cross members only.
      • Exclusively lift the component, do not move it forwards, backwards or in transverse direction.
    1. Guide in and position special tool 2 459 012 on cylinder head.
      GTY946360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09200-WA610
    2. Tighten the bolts (1) of special tool 2 459 012.
      • SST: 09200-WA610

      Torque: 21.5 N*m (219 kgf*cm, 16 ft.*lbf)

    3. Connect both hooks (1) and (2) of the special tool 0 490 561 (11 0 000) to the front and back of the engine with the engine hangers.
      GTY994519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09200-WA870

      HINT:

      The workshop crane, lifting gear and the engine hangers on the engine must all be connected to each other so that the engine hangs straight upon lifting.

    4. Release the E14 bolt (1) from the top.
      GTY1154433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Release the E14 bolt (1) from the top.
      GTY1154434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Raise and remove the engine.
  49. INSTALL ENGINE STAND
    WARNING:
    • Heavy component.

      Heavy components can lead to injury or damage.

      • Remove and install heavy components with the aid of another person/other persons.
    1. Loosen E12 bolts (1).
      GTY994828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 front engine mounting bracket RH (2).
    3. Position and secure engine stand attachment No. 1 on the engine.
      GTY994997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten bolts (1).

      Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

    5. Lower engine slowly.
    6. Release both hooks of the special tool 0 490 561 (11 0 000) at the front and back of the engine from the engine hangers.
      GTY995160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09200-WA870

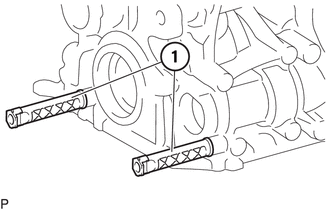

  50. REMOVE SPACER BRACKET
    1. Remove the 2 spacer brackets (1).
      GTY995967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
