Removal [07/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT SUSPENSION MEMBER LOWER PROTECTOR

    Refer to REMOVAL [03/2019 - ]

  2. DRAIN ENGINE COOLANT (for High Temperature)

    Refer to PROCEDURE - Step 4

  3. REMOVE ENGINE ROOM ECM COVER

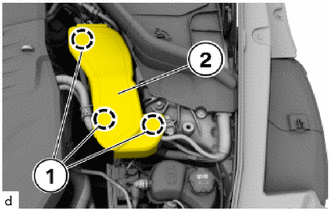

    1. Release snap-lock couplings (1).
      GTY945959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Feed the engine room ECM cover (2) out toward the top and remove.
  4. REMOVE NO. 2 RADIATOR HOSE
    WARNING:
    • Hot fluids.

      Risk of scalding!

      • Conduct all work in the vehicle wearing appropriate personal protective equipment only.
    NOTE:

    Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

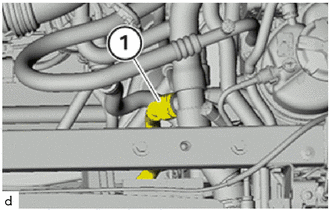

    1. Unlock radiator hose sub-assembly (1) and pull off.
      GTY994805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Catch and dispose of escaping coolant.

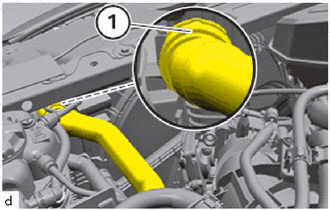

    3. Unlock No. 2 radiator hose (1) and pull off.
      GTY994832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Catch and dispose of escaping coolant.

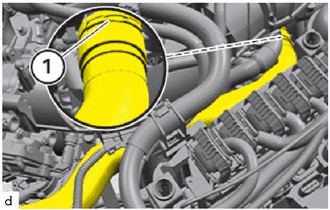

    5. Unlock the No. 2 radiator hose (1) below the intake plenum and detach it from the water valve.
      GTY994728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Catch and dispose of escaping coolant.
    7. Guide the No. 2 radiator hose (1) out and remove.
