Removal [07/2020 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE AIR CLEANER HOSE ASSEMBLY
See step 3
- REMOVE NO. 2 AIR CLEANER HOSE WARNING:
- Hot surfaces.
Risk of burning!
- Perform all work only on components that have cooled down.

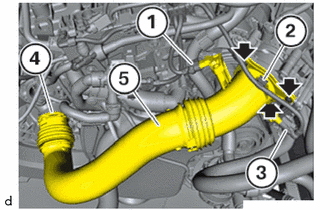

- Unlock and loosen the connector (1) on the charging pressure sensor.
- Loosen clamp (2).
- Unlock and disconnect the connector (3) from the charge-air temperature sensor.
- Remove T30 bolts (arrows).
- Unlock and loosen the clamp (4) on the turbocharger sub-assembly.
- Guide out and remove No. 2 air cleaner hose (5).
- Hot surfaces.
