Removal [07/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AIR CLEANER ASSEMBLY

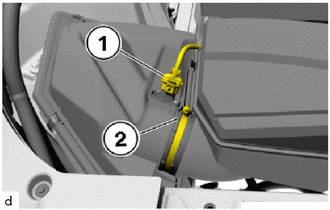

    1. Unlock plug connection (1) and disconnect.
      GTY994456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unfasten clamp (2).

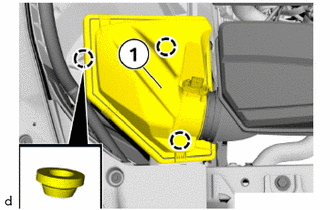

    3. Release the air cleaner assembly (1) towards the top from the rubber mounts (marks) and remove.
      GTY994506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
