Removal [07/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE AIR CLEANER ASSEMBLY

    See step  1

  3. REMOVE AIR CLEANER HOSE ASSEMBLY
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    1. Loosen clamp (1).

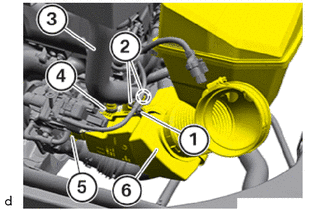

      GTY994493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unlock the locks (2).
    3. Feed the engine ventilation line (3) out and set it aside.
    4. Unlock and release tank ventilation line (4).
    5. Unlock and loosen clamp (5).
    6. Remove the air cleaner hose assembly (6).
