Removal [02/2019 - 08/2020]: Procedure

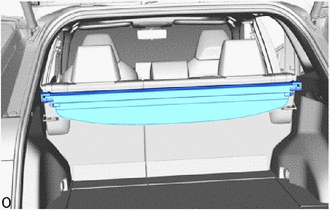

- REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

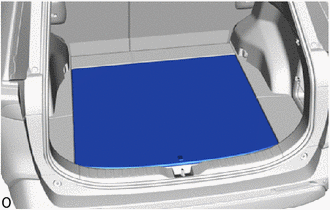

- REMOVE DECK BOARD ASSEMBLY

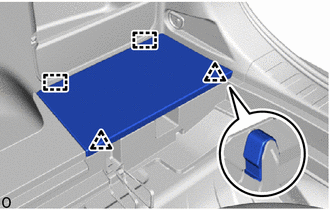

- REMOVE REAR NO. 2 FLOOR BOARD

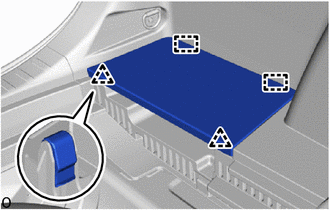

- REMOVE REAR NO. 3 FLOOR BOARD

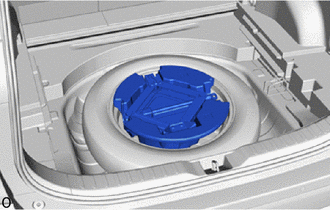

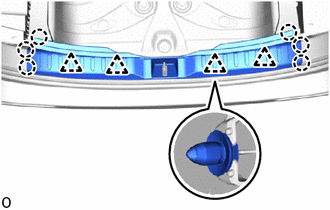

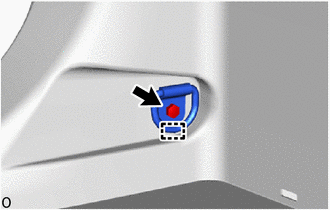

- REMOVE SPARE WHEEL COVER STOPPER
- REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 2

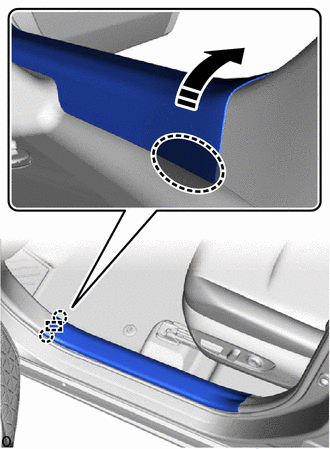

- REMOVE REAR DOOR SCUFF PLATE LH
- for Gasoline Model:

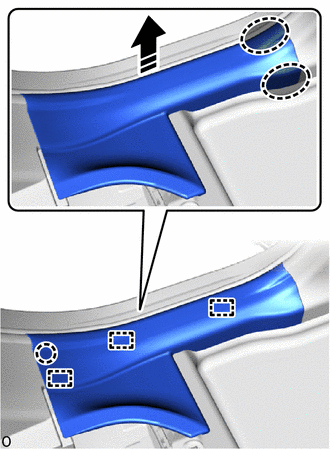

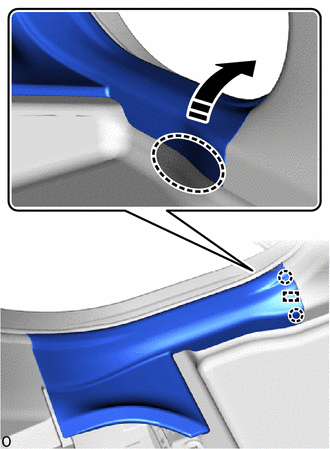

- Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.
Place Hand Here Remove in this Direction - Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the rear door scuff plate LH.
Place Hands Here Remove in this Direction
- Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.
- for HV Model:
- Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.
Place Hand Here Remove in this Direction - Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp, claw and clip and remove the rear door scuff plate LH.
Place Hands Here Remove in this Direction
- Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.
- for Gasoline Model:
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure described for the LH side.
- REMOVE REAR FLOOR FINISH PLATE
- REMOVE REAR SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)
Refer to PROCEDURE - Step 4
- REMOVE REAR SEATBACK ASSEMBLY RH
Refer to PROCEDURE - Step 5
- REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)
Refer to PROCEDURE - Step 6
- REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)
Refer to PROCEDURE - Step 4
- REMOVE BATTERY SERVICE COVER BOARD (for HV Model)
Refer to PROCEDURE - Step 7
- REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 7
- REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
Refer to PROCEDURE - Step 7

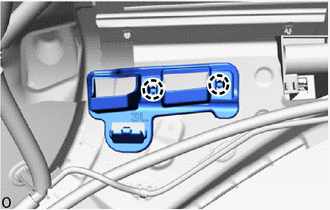

- REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 6
- REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
Refer to PROCEDURE - Step 6
- REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 2
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure described for the LH side.
- REMOVE FRONT DOOR SCUFF PLATE LH

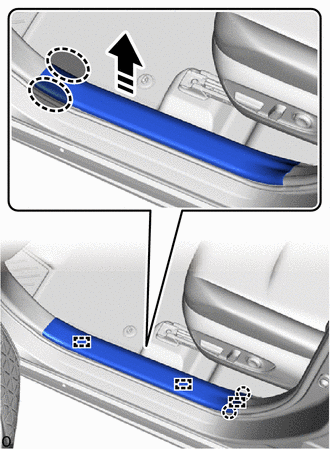

- Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.
Place Hand Here Remove in this Direction - Place both hands at the position shown in the illustration and lift in the direction indicated by the arrow to detach the clamp and claw and remove the front door scuff plate LH.
Place Hands Here Remove in this Direction
- Place your hand at the position shown in the illustration and pull in the removal direction to detach the claw and guide.
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure described for the LH side.
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 16 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 16 [10/2019 - 08/2020]
- REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure described for the LH side.
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 3
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure described for the LH side.

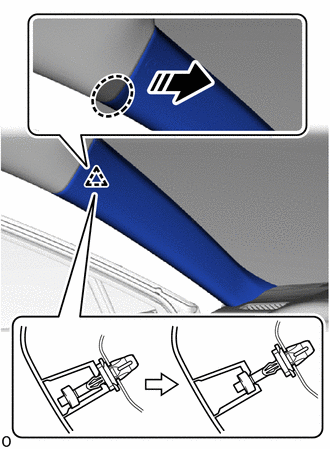

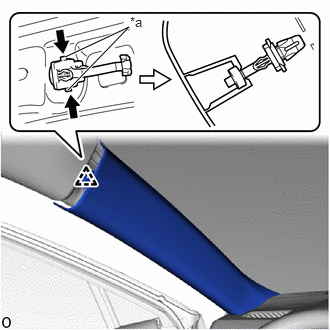

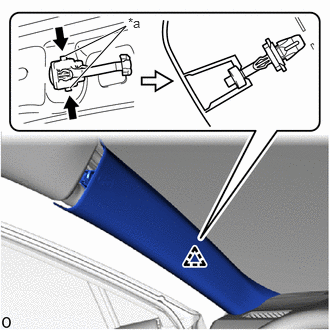

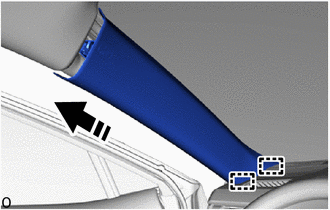

- REMOVE FRONT PILLAR GARNISH LH
- Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip.
Place Hand Here Remove in this Direction - Push in the release lever with your finger and remove the front pillar garnish clip from the vehicle.
*a Release Lever Push - When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:
Direction (A) Push Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.
Direction (B) Release Lever Push Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.
- Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip.
Place Hand Here Remove in this Direction - Push in the release lever with your finger and remove the front pillar garnish clip from the vehicle.
*a Release Lever Push - When the front pillar garnish clip cannot be detached by pressing the knobs with the fingers:
Direction (A) Push Lift up the front pillar garnish clip in the direction (A) while pressing the portion indicated by the arrow in the illustration with your fingers.
Direction (B) Release Lever Push Push in the portion indicated by the arrow in the illustration with the screwdriver end while pulling the front pillar garnish clip with your fingers in the direction (B) to detach the front pillar garnish clip.

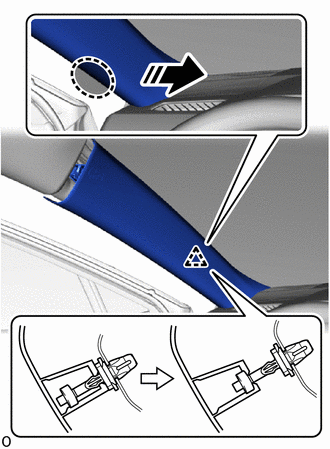

- Pull in the direction of the arrow shown in the illustration to detach the guide and remove the front pillar garnish LH.
Remove in this Direction - for 9 Speakers:
- Protect curtain shield airbag assembly:

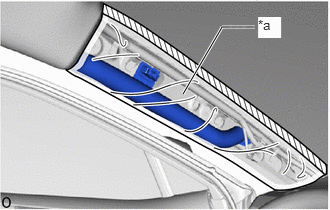

*a Protective Cover Adhesive Tape - Cover the airbag with a cloth or piece of nylon and secure both ends of the cover with adhesive tape as shown in the illustration.NOTE:
Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish assembly LH is removed.
- Cover the airbag with a cloth or piece of nylon and secure both ends of the cover with adhesive tape as shown in the illustration.
- Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the front pillar garnish clip.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure described for the LH side.

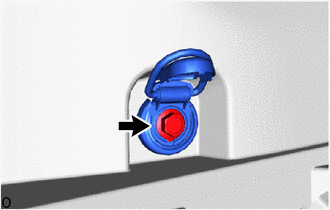

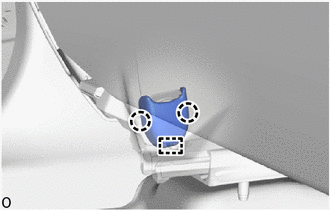

- REMOVE OUTER LAP BELT ANCHOR COVER
HINT:
Use the same procedure for both outer lap belt anchor covers.

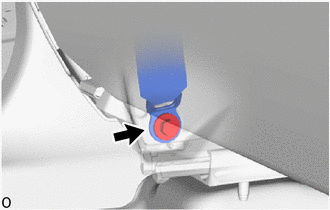

- REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH
- REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

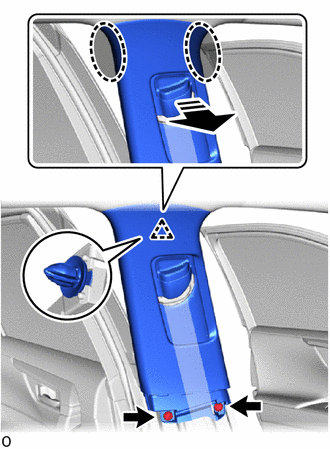

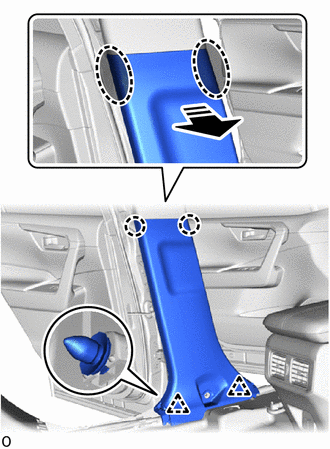

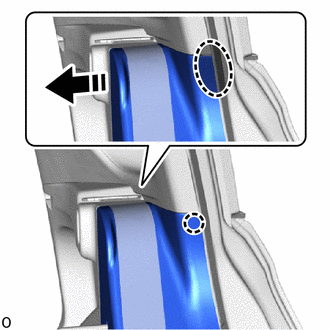

- REMOVE LOWER CENTER PILLAR GARNISH LH
- REMOVE LOWER CENTER PILLAR GARNISH RH
HINT:
Use the same procedure described for the LH side.
- REMOVE CENTER PILLAR GARNISH LH
- REMOVE CENTER PILLAR GARNISH RH
HINT:
Use the same procedure described for the LH side.

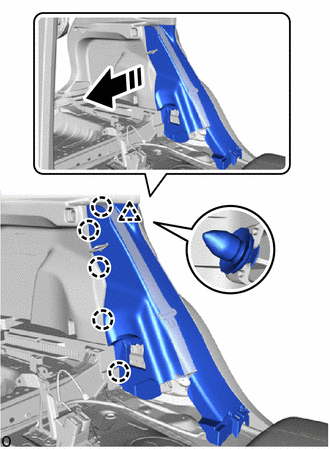

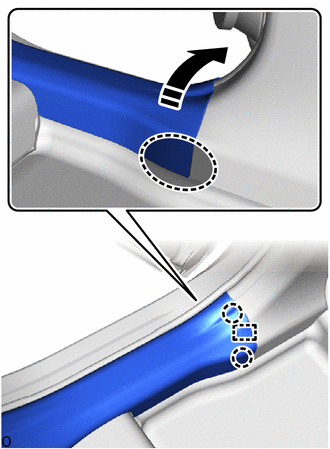

- REMOVE REAR SEAT SIDE GARNISH LH
- REMOVE REAR SEAT SIDE GARNISH RH
HINT:
Use the same procedure described for the LH side.

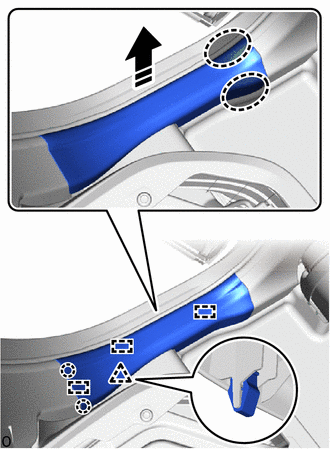

- REMOVE TETHER ANCHOR BRACKET SET
HINT:
Use the same procedure for the opposite side.

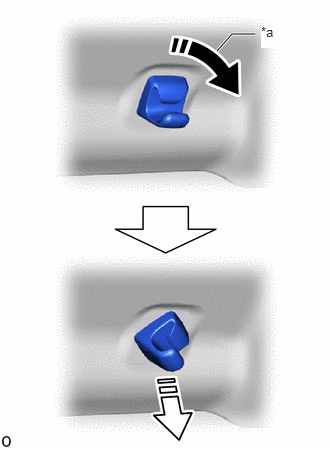

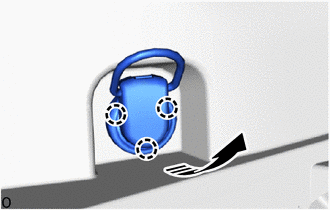

- REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
HINT:
Use the same procedure for the opposite side.

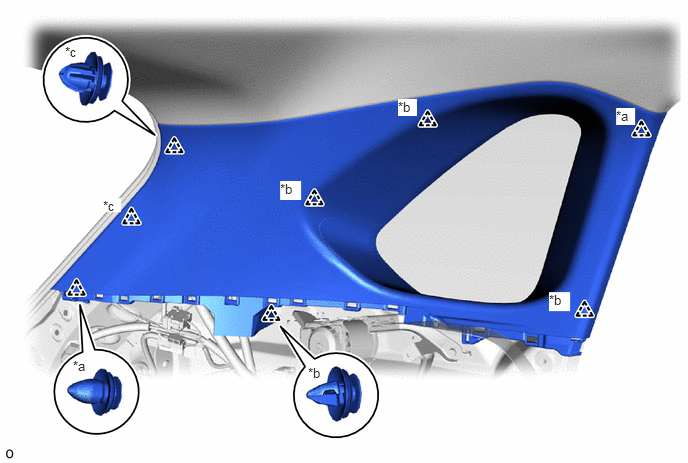

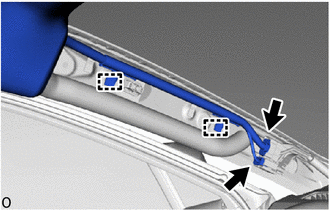

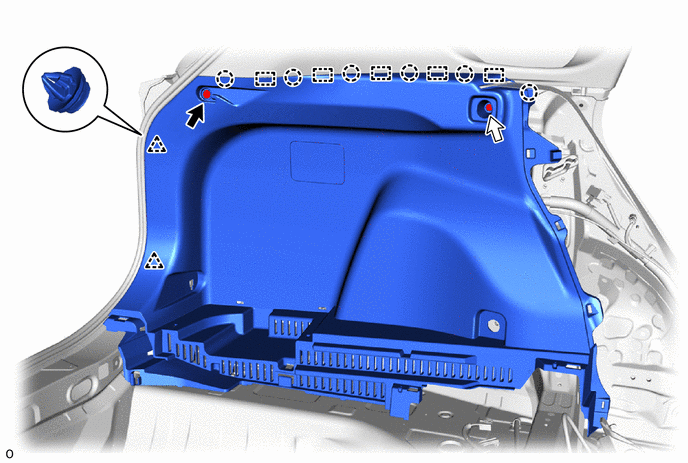

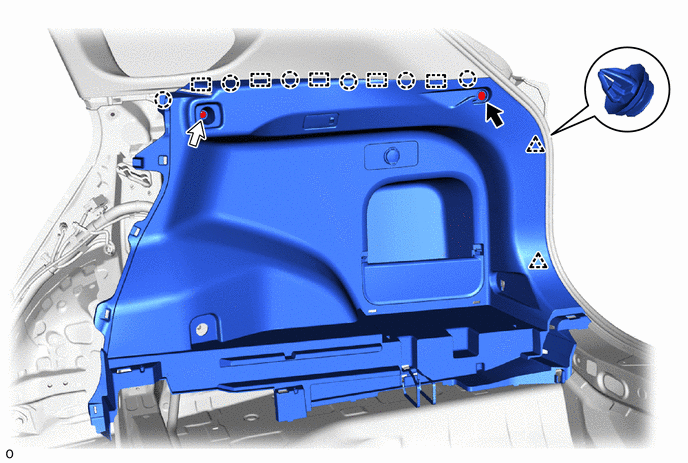

- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

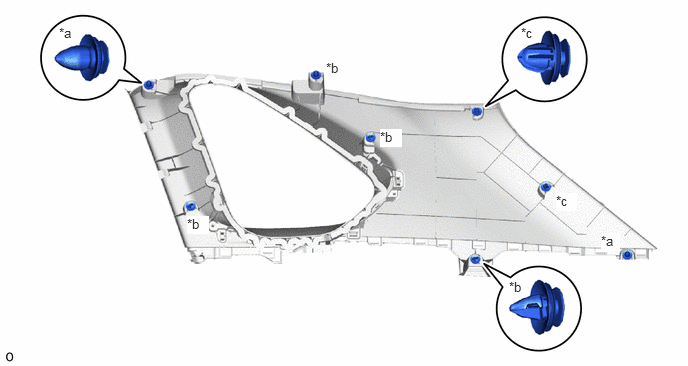

- REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH
- REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

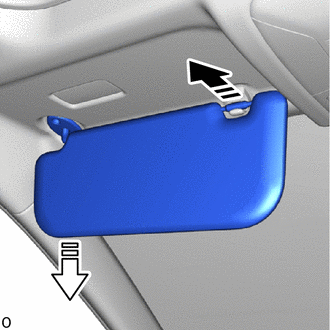

- REMOVE VISOR ASSEMBLY LH
- except "TORX" Type:

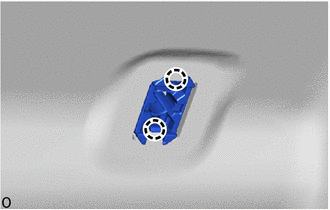

- Remove the 2 screws.
- for "TORX" Type:

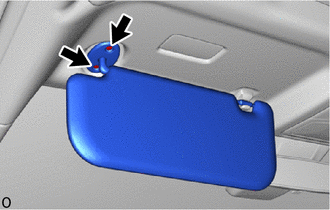

- Using a T25 "TORX" socket wrench, remove the 2 "TORX" screws.
- Pull in the direction of the arrow shown in the illustration (1) to detach the visor assembly LH from the visor holder LH.
Remove in this Direction (1) Remove in this Direction (2) - Pull in the direction of the arrow shown in the illustration (2) and remove the visor assembly LH.NOTE:
Do not twist or remove the visor assembly in any direction other than downwards as the connector may become damaged.
- except "TORX" Type:
- REMOVE VISOR ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.

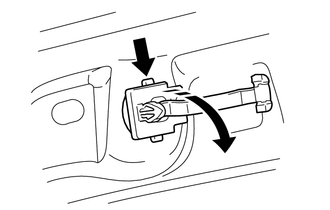

- REMOVE VISOR HOLDER
HINT:
Use the same procedure for the opposite side.

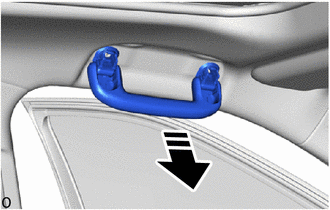

- REMOVE ASSIST GRIP ASSEMBLY
HINT:
Use the same procedure for all assist grip assemblies.

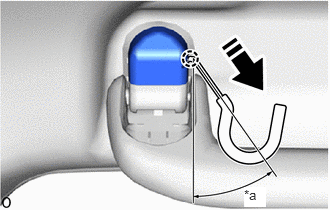

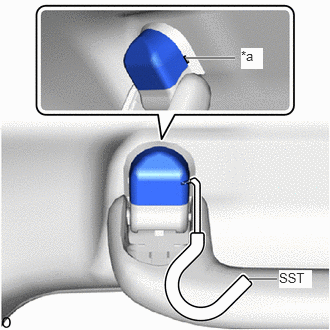

- Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- SST: 09813-00010
NOTE:To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.
*a Cutout - Pull SST as shown in the illustration to detach the claw.
*a 30 to 45° Remove in this Direction NOTE:To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.
HINT:
Use the same procedure for the claw on the other side of the assist grip cover LH.
- Remove the assist grip cover LH.
HINT:
Use the same procedure for the LH side and RH side.

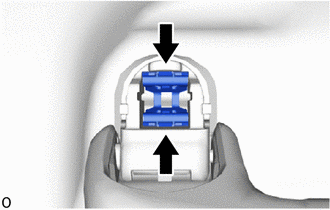

- Pinch the clip with needle-nose pliers.
HINT:
Use the same procedure for both clips.
- Hold the handle and pull in the direction indicated by the arrow shown in the illustration to remove the assist grip assembly.
Remove in this Direction - Using needle-nose pliers, remove the clip.
- Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- REMOVE REAR ASSIST GRIP ASSEMBLY LH
HINT:
Use the same procedure as for the assist grip assembly.
- REMOVE REAR ASSIST GRIP ASSEMBLY RH
HINT:
Use the same procedure as for the assist grip assembly.

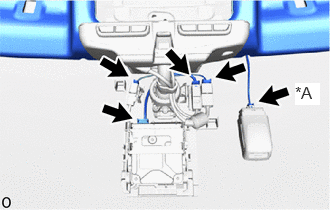

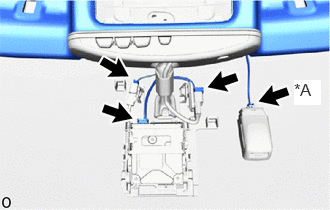

- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ROOM LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1

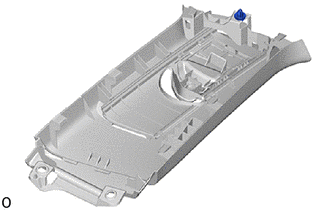

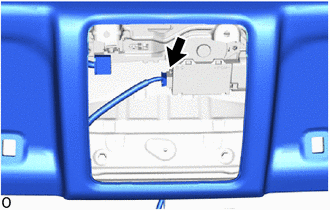

- REMOVE RAIN SENSOR COVER (w/ Rain Sensor)
Refer to PROCEDURE - Step 1
- REMOVE PROTECTOR (w/ Humidity Sensor)
HINT:
Use the same procedure as for the rain sensor cover.
Refer to PROCEDURE - Step 1
- REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)
Refer to PROCEDURE - Step 2

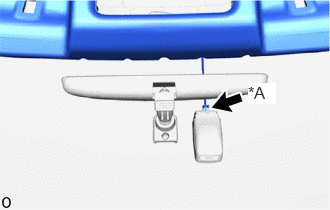

- REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror, w/o Pre-collision System)
Refer to PROCEDURE - Step 1

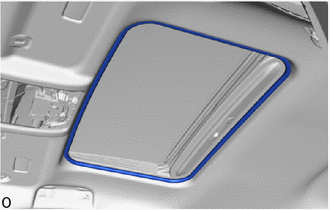

- REMOVE SUN ROOF OPENING TRIM MOULDING (for Moon Roof)
- REMOVE ROOF HEADLINING ASSEMBLY (for Normal Roof)
- for Front Pillar LH Side:
- for Front Pillar RH Side:
- for Rear Pillar LH Side:

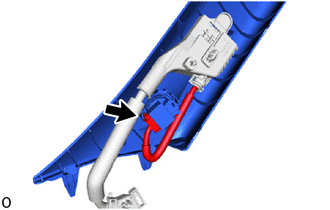

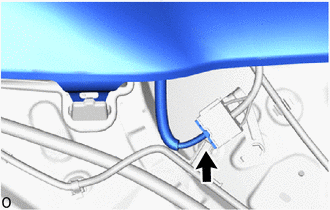

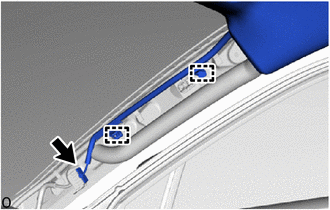

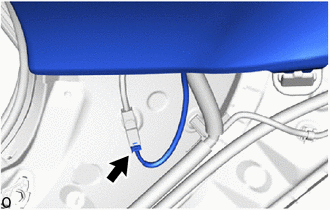

- Disconnect the connector.
- for Rear Pillar RH Side:
- Disconnect the connector.

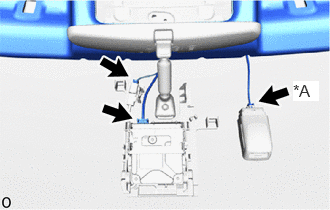

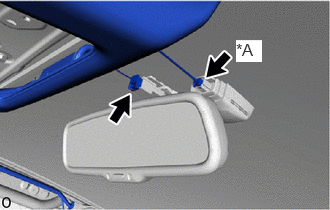

- w/o EC Mirror, w/o Pre-collision System:
- w/o EC Mirror, w/ Pre-collision System:
- w/ EC Mirror, w/o Pre-collision System:
- w/ EC Mirror, w/ Pre-collision System:
- w/ Digital Inner Mirror:

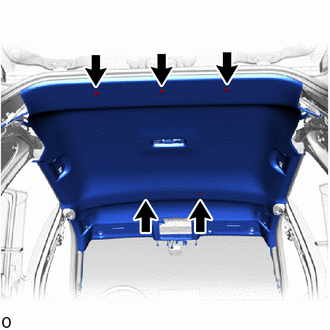

- Remove the 5 clips.

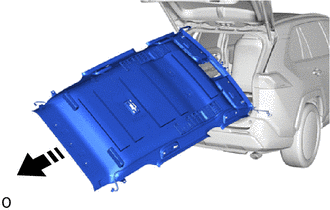

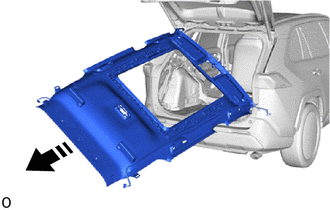

- Turn the roof headlining diagonally and bend slightly to remove it from the back door.
Remove in this Direction NOTE:- Make sure that wrinkles do not form in the roof headlining assembly during removal.
- Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.
- Do not damage the roof headlining assembly or vehicle interior.
- 2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.
- REMOVE ROOF HEADLINING ASSEMBLY (for Moon Roof)
- for Front Pillar LH Side:
- for Front Pillar RH Side:
- for Rear Pillar LH Side:

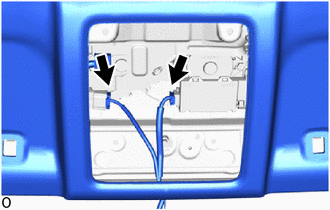

- Disconnect the connector.
- for Rear Pillar RH Side:
- Disconnect the connector.
- w/o EC Mirror, w/o Pre-collision System:
- w/o EC Mirror, w/ Pre-collision System:
- w/ EC Mirror, w/o Pre-collision System:
- w/ EC Mirror, w/ Pre-collision System:
- w/ Digital Inner Mirror:
- Disconnect the connector.

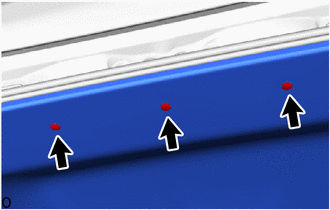

- Remove the 3 clips.

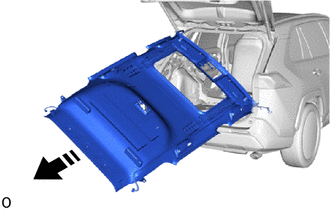

- Turn the roof headlining assembly diagonally and bend slightly to remove it from the back door.
Remove in this Direction NOTE:- Make sure that wrinkles do not form in the roof headlining assembly during removal.
- Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.
- Do not damage the roof headlining assembly or vehicle interior.
- 2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.
- REMOVE ROOF HEADLINING ASSEMBLY (for Panoramic Moon Roof)
- for Front Pillar LH Side:
- for Front Pillar RH Side:
- for Rear Pillar LH Side:
- Disconnect the connector.
- for Rear Pillar RH Side:
- Disconnect the connector.
- w/o EC Mirror, w/ Pre-collision System:
- w/ EC Mirror, w/o Pre-collision System:
- w/ EC Mirror, w/ Pre-collision System:
- w/ Digital Inner Mirror:
- Disconnect the 2 connectors.
- Remove the 3 clips.

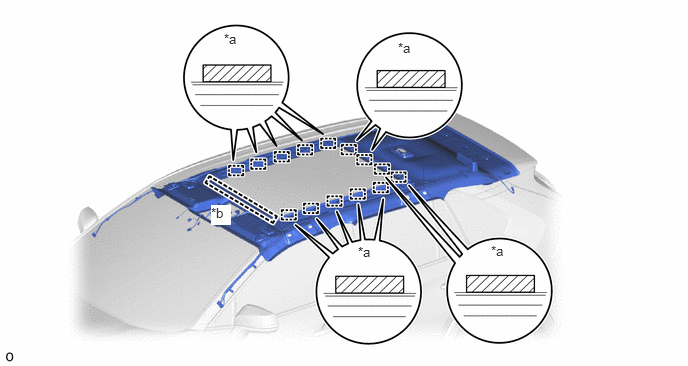

- Detach the fastener and guide.
*a Fastener *b Guide - Turn the roof headlining assembly diagonally and bend slightly to remove it from the back door.
Remove in this Direction NOTE:- Make sure that wrinkles do not form in the roof headlining assembly during removal.
- Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.
- Do not damage the roof headlining assembly or vehicle interior.
- 2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.

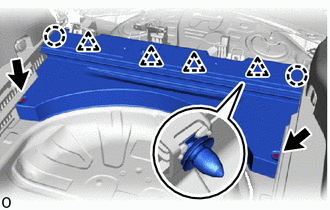

- REMOVE REAR NO. 2 SIDE RAIL SPACER LH
HINT:
Perform this procedure only when replacing the rear No. 2 side rail spacer LH.
- REMOVE REAR NO. 2 SIDE RAIL SPACER RH
HINT:
- Perform this procedure only when replacing the rear No. 2 side rail spacer RH.
- Use the same procedure described for the LH side.

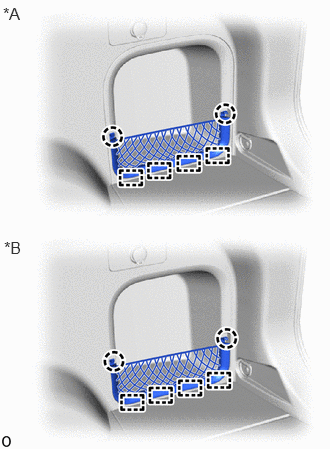

- REMOVE ROOM PARTITION NET ASSEMBLY (w/ Partition Net)
HINT:
Perform this procedure only when replacing the room partition net assembly.

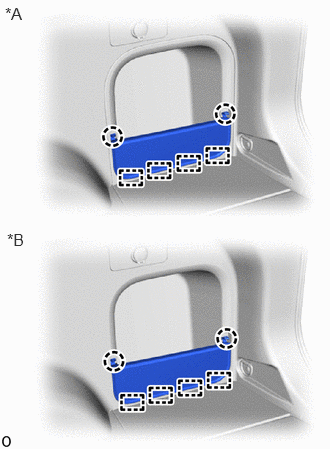

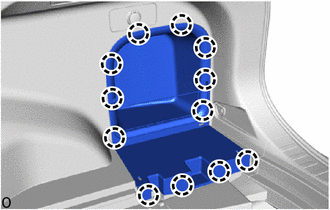

- REMOVE DECK TRIM POCKET COVER PLATE (except Partition Net)
HINT:
Perform this procedure only when replacing the deck trim pocket cover plate.
- REMOVE BATTERY HOLE COVER (for HV Model)
HINT:
Perform this procedure only when replacing the battery hole cover.
