Removal [11/2018 - 08/2020]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)

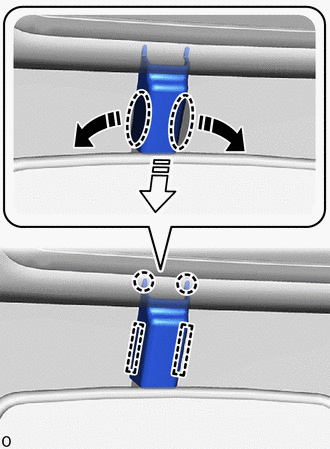

    1. Place your fingers at the position shown in the illustration and detach the guide in the removal direction (1).
      GTY865592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place finger here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Slide the inner rear view mirror stay holder cover in the removal direction (2) and detach the claw.

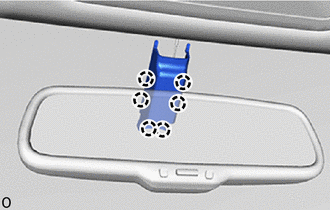

    3. Detach the claw and remove the inner rear view mirror stay holder cover.
      GTY942803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  4. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

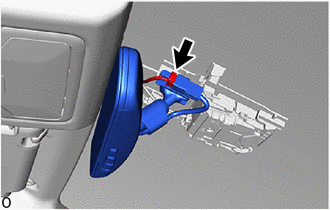

    1. Disconnect the connector.
      GTY913487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

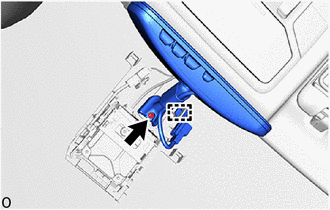

    2. Detach the clamp.
      GTY913488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a T20 "TORX" socket wrench, remove the "TORX" screw.

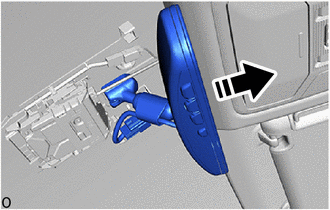

    4. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
      GTY856468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
