Removal [11/2018 - 12/2021]: Procedure

REMOVE NO. 2 FORWARD RECOGNITION COVER

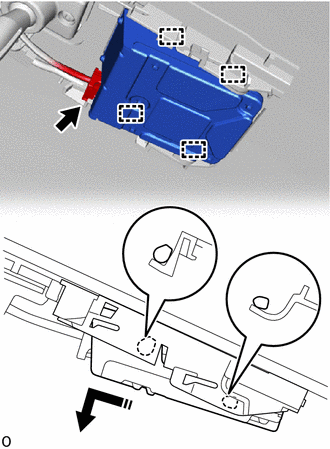

Detach the claw in the direction indicated by the arrow (1) as shown in the illustration.

NOTE:

If the 2 claws are detached separately they may become damaged. Therefore, remove them at the same time.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

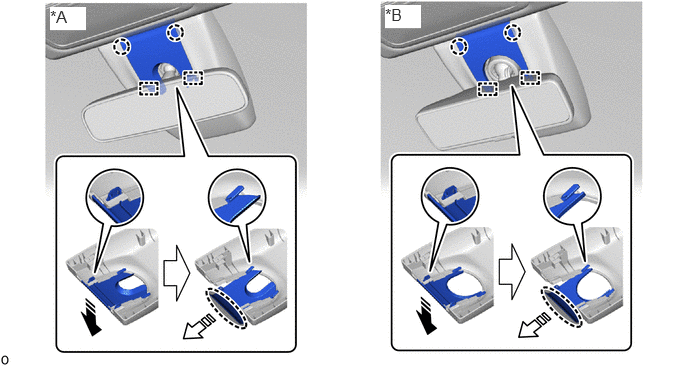

Place your fingers of both hands at the position shown in the illustration and detach the guide in the direction indicated by the arrow (2) in the illustration to remove the No. 2 forward recognition cover.

REMOVE NO. 1 FORWARD RECOGNITION COVER

Detach the clip and guide and remove the No. 1 forward recognition cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

NOTE:

When removing, press the cover parallel to the windshield glass surface and remove.

REMOVE FORWARD RECOGNITION LATCH

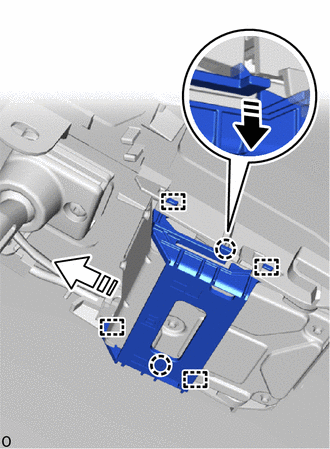

Detach the claw in the direction indicated by the arrow (1) in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the guide in the direction indicated by the arrow (2) in the illustration to remove the forward recognition latch.

REMOVE FORWARD RECOGNITION CAMERA

NOTE:

If the forward recognition camera has been struck or dropped, replace it with a new one.

Disconnect the connector.

Remove in this Direction

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

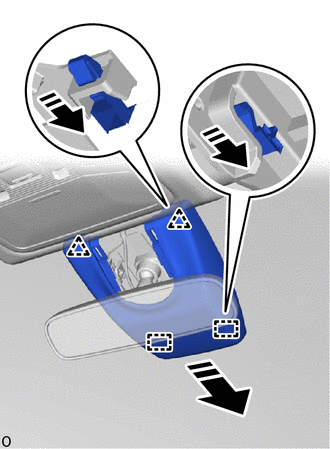

Detach the guide and remove the forward recognition camera as shown in the illustration.
NOTE:
- Do not apply excessive force.
- If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
