Removal [11/2018 - ]: Procedure

  1. REMOVE RAIN SENSOR COVER

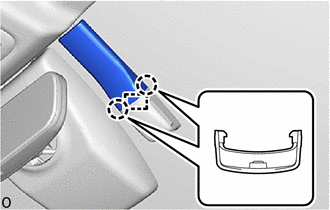

    1. Detach the claw and guide to remove the rain sensor cover.
      GTY909272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RAIN SENSOR
    1. Pull the stopper in the direction (1) indicated by the arrow shown in the illustration to release the lock.
      GTY857003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stopper
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the rain sensor in the direction (2) indicated by the arrow shown in the illustration and remove it.

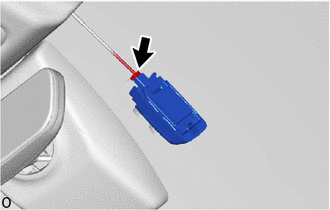

    3. Disconnect the connector.
      GTY909284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the rain sensor has been dropped, replace it with a new one.
