Removal [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 8 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

  4. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

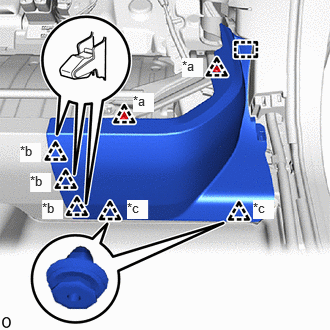

    1. Remove the 2 clips (A).
      GTY893878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Clip (B)
      *c Clip (C)
    2. Disengage the 3 clips (B), 2 clips (C) and guide to remove the No. 3 battery service cover board.
  5. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE NO. 2 BATTERY SERVICE COVER BOARD

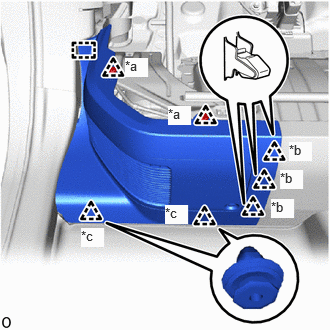

    1. Remove the 2 clips (A).
      GTY881820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Clip (B)
      *c Clip (C)
    2. Disengage the 3 clips (B), 2 clips (C) and guide to remove the No. 2 battery service cover board.
  7. REMOVE BATTERY SERVICE COVER BOARD

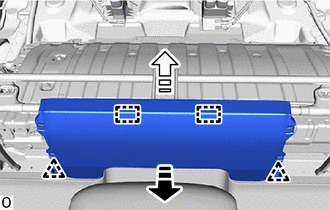

    1. Pull the battery service cover board in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
      GTY901355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the battery service cover board in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides to remove it from the rear seat cushion leg sub-assembly.
  8. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

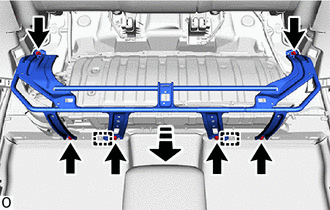

    1. Remove the 6 bolts.
      GTY854131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Pull in the direction of the arrow in the illustration and detach the 2 guides and remove the rear seat cushion leg sub-assembly.
  9. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT

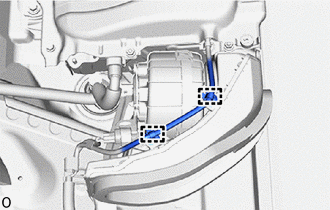

    1. Disengage the 2 clamps.
      GTY942229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

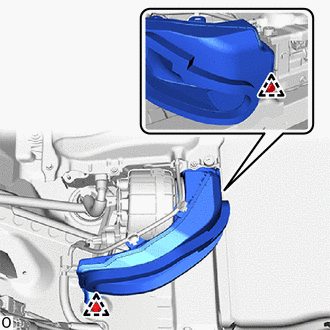

    2. Remove the 2 clips and No. 1 hybrid battery intake duct from the battery cooling blower assembly.
      GTY910976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE BATTERY COOLING BLOWER ASSEMBLY

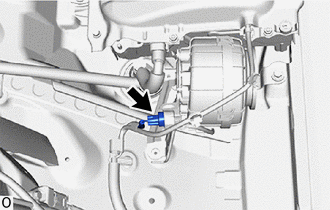

    1. Disconnect the battery cooling blower assembly connector.
      GTY910977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

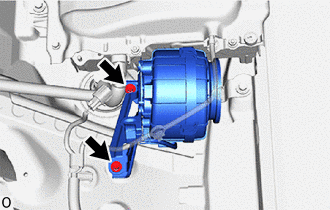

    2. Remove the 2 bolts and battery cooling blower assembly from the HV battery.
      NOTE:
      • Be sure not to touch the fan part of the battery cooling blower assembly.
      • Do not lift the battery cooling blower assembly using the wire harness.
      GTY942231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE BATTERY COOLING BLOWER BRACKET

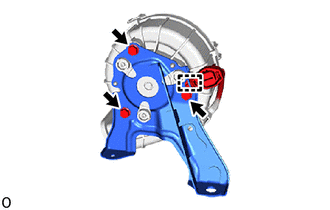

    1. Disengage the clamp.
      GTY910975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and battery cooling blower bracket from the battery cooling blower assembly.
