Removal [11/2018 - 12/2021]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

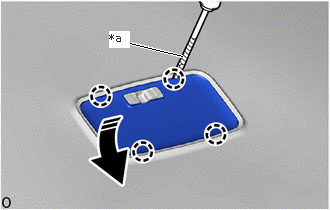

    1. Using a screwdriver with its tip wrapped in protective tape, detach the claw and remove the No. 1 room light lens as shown in the illustration.
      GTY759937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

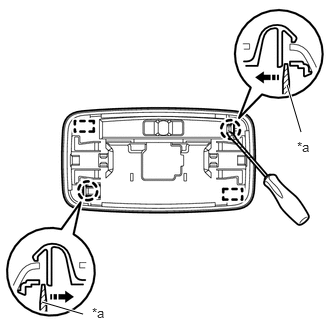

    2. Using a screwdriver with its tip wrapped in protective tape, detach the claw and guide and remove the No. 1 room light housing from the roof headlining assembly.
      GTY894481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    3. Detach the claw and guide and remove the room light housing from the No. 1 room light switch base.
      GTY582995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ROOM LIGHT BULB
    1. Remove the No. 1 room light bulb as shown in the illustration.
      GTY774238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
