Installation [11/2020 - 12/2022]: Procedure

  1. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for LH Side)

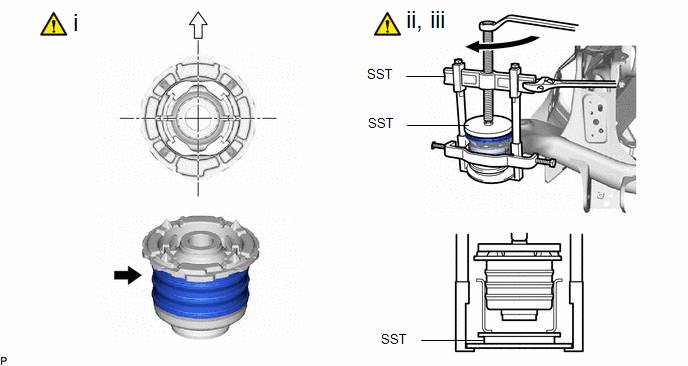

    1. GTY979005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Diluted Liquid Soap Front of the Vehicle
      1. Apply diluted liquid soap to the outside of a new rear suspension member rear body mounting cushion.
        NOTE:

        Do not use grease or undiluted liquid soap. Doing so may cause the rear suspension member front body mounting cushion to slip out.

        HINT:

        A 20% liquid soap and water concentration is recommended.

      2. Temporarily install the rear suspension member rear body mounting cushion while confirming the installation direction.
      3. Using SST, install the rear suspension member rear body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mounting cushion.
        • SST: 09316-12010
        • SST: 09570-24011
        • SST: 09950-40011
          1. 09951-04020
          2. 09952-04010
          3. 09953-04030
          4. 09954-04020
          5. 09955-04051
          6. 09957-04010
          7. 09958-04011
        • SST: 09950-60021
          1. 09951-00910
        NOTE:

        Apply grease to the threads and tip of the SST center bolt before use.

  2. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for RH Side)
    1. Perform the same procedure as for the LH side.
  3. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

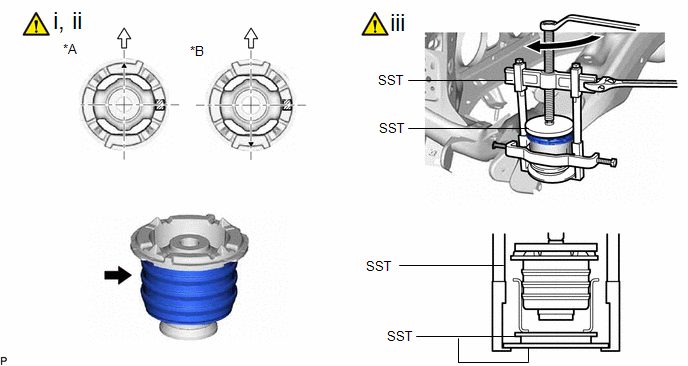

    1. GTY979617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side *B for RH Side
      Diluted Liquid Soap Front of the Vehicle
      1. Apply diluted liquid soap to the outside of a new rear suspension member front body mounting cushion.
        NOTE:

        Do not use grease or undiluted liquid soap. Doing so may cause the rear suspension member front body mounting cushion to slip out.

        HINT:

        A 20% liquid soap and water concentration is recommended.

      2. Temporarily install the rear suspension member front body mounting cushion while confirming the installation direction.
      3. Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
        • SST: 09316-12010
        • SST: 09570-24011
        • SST: 09950-40011
          1. 09951-04020
          2. 09952-04010
          3. 09953-04030
          4. 09954-04020
          5. 09955-04051
          6. 09957-04010
          7. 09958-04011
        • SST: 09950-60021
          1. 09951-00910
        NOTE:

        Apply grease to the threads and tip of the SST center bolt before use.

  4. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
    1. Perform the same procedure as for the LH side.
  5. INSTALL REAR MOTOR MOUNTING INSULATOR

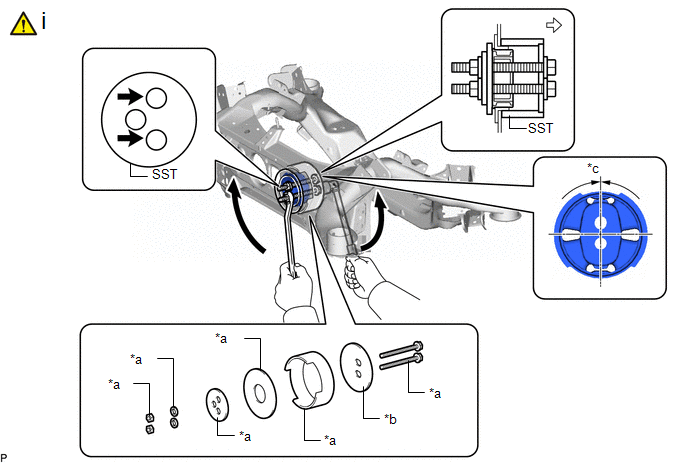

    1. GTY980946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SST (09570-48010) *b SST (09570-24011)
      *c 0° +/- 3° - -
      SST bolt location Front of the Vehicle
      1. Using SST, install a new rear motor mounting insulator.
        • SST: 09570-24011
        • SST: 09570-48010
        NOTE:
        • Make sure that the rear motor mounting insulator is aligned within 3° from the center.
        • Temporarily install the rear motor mounting insulator to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
        • Before using SST, apply grease to the SST bolts.
        • Be sure to use the correct combination of SST.
        • Do not tilt the bolts of SST.
        • Tighten the 2 bolts of SST so that they enter the 2 holes of the rear motor mounting insulator by an equal amount.

        HINT:

        Install the 2 SST bolts to the 2 SST holes as shown in the illustration.

  6. TEMPORARILY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  7. TEMPORARILY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH

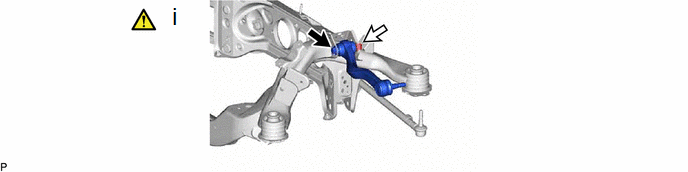

    1. GTY980969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      1. Insert the bolt from the front of the vehicle. Then temporarily tighten the rear upper control arm assembly LH with the nut and washer.
  8. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

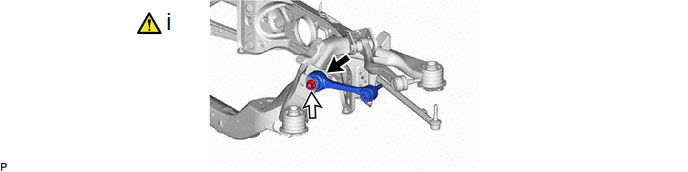

    1. GTY979995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      1. Insert the bolt from the back of the vehicle. Then temporarily tighten the rear No. 1 suspension arm assembly LH with the nut and washer.
  9. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

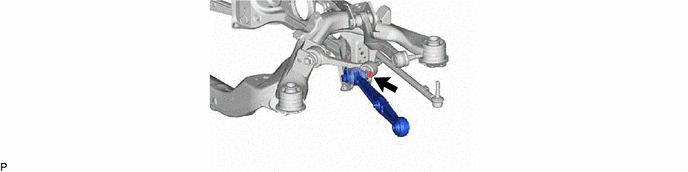

    1. GTY979960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH

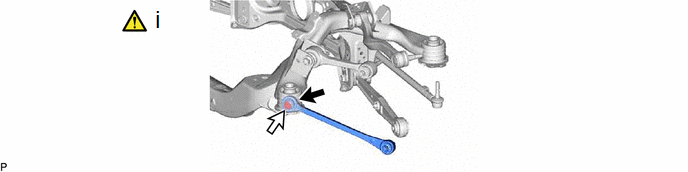

    1. GTY981269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      1. Insert the bolt from the back of the vehicle. Then temporarily tighten the lower control arm assembly LH with the nut.
  11. TEMPORARILY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  12. TEMPORARILY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  13. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  14. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  15. TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  16. INSTALL FCV WITH MOTOR TRANSAXLE ASSEMBLY

    Refer to INSTALLATION [11/2020 - ]

  17. INSTALL REAR STABILIZER BAR
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to INSTALLATION [11/2020 - ]
  18. TEMPORARILY TIGHTEN REAR STABILIZER LINK ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  19. TEMPORARILY TIGHTEN REAR STABILIZER LINK ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  20. INSTALL PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY

    Refer to INSTALLATION [11/2020 - ]

  21. INSTALL NO. 2 MOTOR CABLE BRACKET

    Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

  22. INSTALL MOTOR CABLE BRACKET

    Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

  23. INSTALL REAR UPPER REAR SUSPENSION MEMBER STOPPER
  24. INSTALL REAR LOWER SUSPENSION MEMBER STOPPER
  25. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

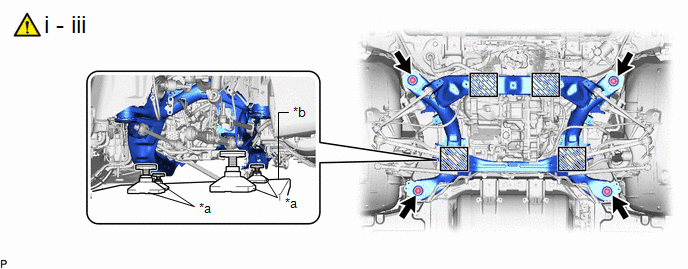

    1. GTY979378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment *b Engine Lifter
      Attachment placement location - -
      1. Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.
        WARNING:
        • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
        • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
        GTY628581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Use attachments to keep the rear suspension member sub-assembly level.

      2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle body.
        NOTE:

        When raising the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

      3. Install the rear lower suspension member stopper LH, rear lower suspension member stopper RH and rear suspension member sub-assembly with the 4 bolts.

        Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

  26. INSTALL NO. 1 BOND CABLE

    Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  27. CONNECT OIL COOLER TUBE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  28. INSTALL REAR DRIVE SHAFT ASSEMBLY LH

    Refer to INSTALLATION [11/2020 - ]

  29. INSTALL REAR DRIVE SHAFT ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  30. INSTALL WIRING HARNESS CONNECTOR
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    NOTE:
    • Do not touch the waterproof seal or terminals of the motor cable.
    • To prevent the motor cable from contacting the FCV with motor transaxle assembly, make sure that the hybrid motor control inverter assembly side of the motor cable is wrapped with a plastic bag or equivalent until directly before reconnection.

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  31. INSTALL MOTOR CABLE TERMINAL CAP
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    NOTE:
    • Do not touch the waterproof seal or terminals of the motor cable.
    • To prevent the motor cable from contacting the FCV with motor transaxle assembly, make sure that the hybrid motor control inverter assembly side of the motor cable is wrapped with a plastic bag or equivalent until directly before reconnection.

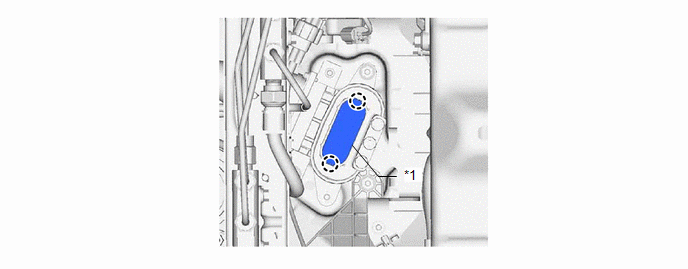

    1. GTY980686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Seal Rubber - -
  32. INSTALL CONNECTOR COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    NOTE:
    • Do not touch the waterproof seal or terminals of the motor cable.
    • To prevent the motor cable from contacting the FCV with motor transaxle assembly, make sure that the hybrid motor control inverter assembly side of the motor cable is wrapped with a plastic bag or equivalent until directly before reconnection.

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  33. INSTALL MOTOR CABLE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    NOTE:
    • Do not touch the waterproof seal or terminals of the motor cable.
    • To prevent the motor cable from contacting the FCV with motor transaxle assembly, make sure that the hybrid motor control inverter assembly side of the motor cable is wrapped with a plastic bag or equivalent until directly before reconnection.

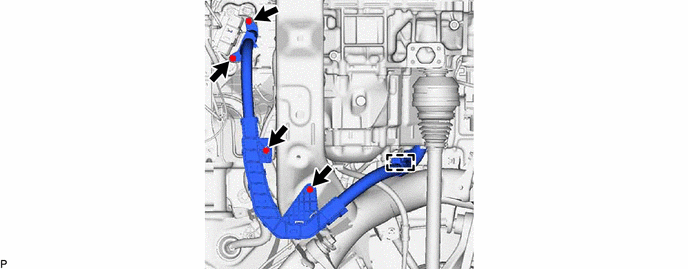

    1. GTY980205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  34. INSTALL MOTOR CABLE BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  35. CONNECT PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY

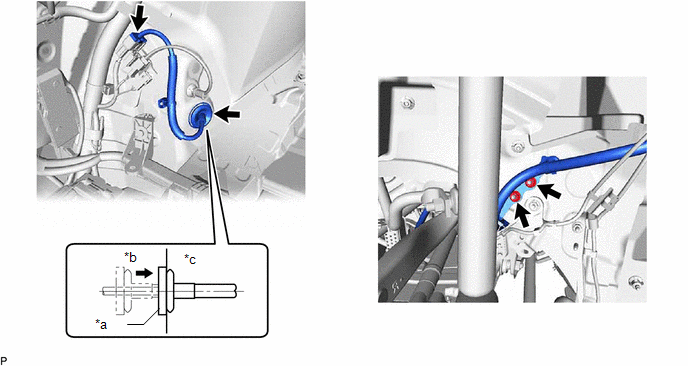

    1. GTY980169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet *b Outside of Vehicle
      *c Inside of Vehicle - -

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  36. INSTALL REAR WHEEL HOUSE LINER LH
  37. INSTALL ROCKER PANEL MOULDING PROTECTOR LH
  38. STABILIZE SUSPENSION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  39. FULLY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  40. FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  41. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  42. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  43. FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  44. FULLY TIGHTEN REAR STABILIZER LINK ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 9
  45. FULLY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  46. FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  47. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  48. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  49. FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  50. FULLY TIGHTEN REAR STABILIZER LINK ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  51. INSTALL REAR TIRE
    1. Perform the same procedure as for the LH side.
  52. INSTALL WIRE HARNESS

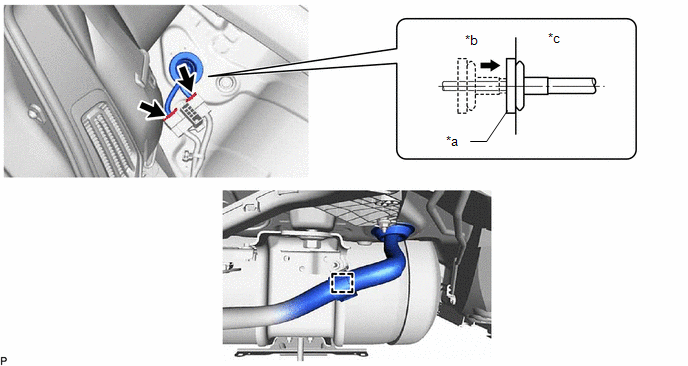

    1. GTY980350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet *b Outside of Vehicle
      *c Inside of Vehicle - -
  53. INSTALL REAR SEAT CUSHION LOCK HOOK
  54. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  55. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LH

    Refer to INSTALLATION [11/2020 - 12/2022]

  56. ADD HYBRID TRANSAXLE FLUID
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  57. INSPECT HYBRID TRANSAXLE FLUID
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  58. BLEED AIR FROM HYBRID TRANSAXLE FLUID
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  59. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  60. INSTALL REAR SUSPENSION BRACE COVER
  61. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
  62. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
  63. INSTALL TRANSMISSION OIL COOLER UNDER COVER LH
  64. INSTALL TRANSMISSION OIL COOLER UNDER COVER RH
  65. INSTALL NO. 1 FLOOR UNDER COVER
  66. CONNECT FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 13
  67. INSTALL FC STACK COVER SUB-ASSEMBLY
  68. INSTALL UPPER RADIATOR SUPPORT SEAL
  69. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [11/2020 - 12/2022]

  70. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [11/2020 - ]

  71. ADJUST PARKING BRAKE

    Refer to ADJUSTMENT [11/2020 - ]

  72. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [11/2020 - ]

  73. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    Refer to WORK PROCEDURE [11/2020 - 12/2022]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to WORK PROCEDURE [11/2020 - 12/2022]

  74. PERFORM INITIALIZATION

    Refer to WORK PROCEDURE [11/2020 - 11/2021] , or refer to WORK PROCEDURE [11/2021 - 12/2022]

scientia non olet · About LEMON Manuals
