Installation [11/2020 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

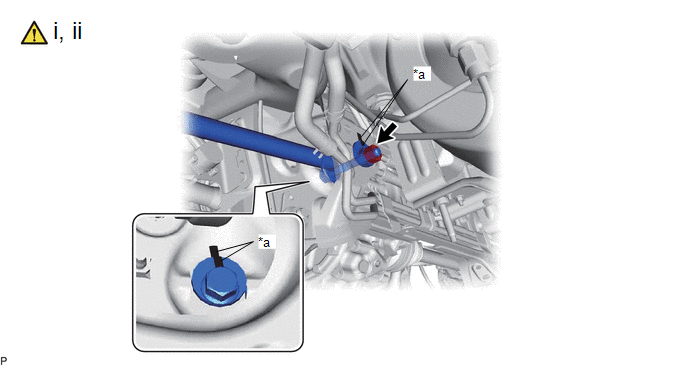

   *a

   Matchmark

   -

   -

   1. Insert the rear suspension toe adjust cam sub-assembly from the front of the vehicle. Then temporarily tighten the rear No. 2 suspension toe adjust plate and toe control link sub-assembly LH with the nut.
      NOTE:

      Align the matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.

   2. Temporarily tighten the toe control link sub-assembly LH with a new nut.

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   -

   -

   1. Fully tighten the nut (rear suspension member sub-assembly side).

      Torque: 78 N.m (795 kgf/cm, 58 ft.lbf)

      NOTE:

      Align the matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.

   2. Fully tighten the nut (rear axle carrier sub-assembly LH side).

      Torque: 118 N.m (1203 kgf/cm, 87 ft.lbf)

Refer to INSTALLATION [11/2020 - ]

Refer to PROCEDURE - Step 11

Refer to PROCEDURE - Step 12

Refer to TEST MODE PROCEDURE [11/2020 - ]

Refer to ADJUSTMENT [11/2020 - ]

Refer to WORK PROCEDURE [11/2020 - 11/2021] , or refer to WORK PROCEDURE [11/2021 - 12/2022] , or refer to WORK PROCEDURE [12/2022 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ]
