Installation [11/2020 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

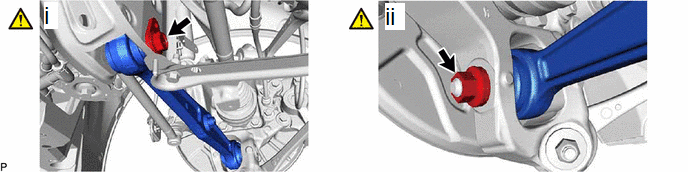

   1. Insert the rear suspension arm attachment sub-assembly from the back of the vehicle. Then temporarily tighten the rear No. 2 suspension toe adjust plate and rear No. 2 suspension arm assembly LH with the nut.
   2. Insert the bolt from the front of the vehicle. Then temporarily tighten the rear No. 2 suspension arm assembly LH with the washer and nut.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

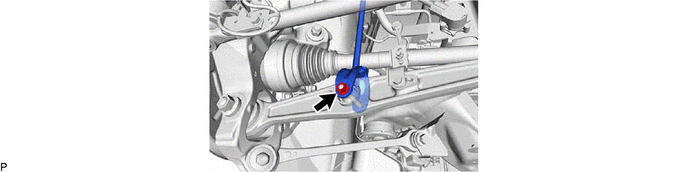

Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt

   Nut

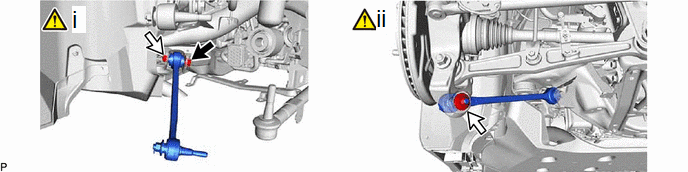

   1. Insert the bolt from the back of the vehicle. Then temporarily tighten the lower control arm assembly LH with the nut.
   2. Temporarily tighten the lower control arm assembly LH with a new nut.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt

   Nut

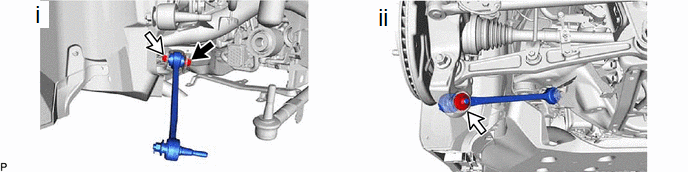

   1. Fully tighten the lower control arm assembly LH with the bolt.

      Torque: 126 N.m (1285 kgf/cm, 93 ft.lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   2. Fully tighten the nut.

      Torque: 118 N.m (1203 kgf/cm, 87 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Fully tighten the rear No. 2 suspension arm assembly LH with the nut.

      Torque: 213 N.m (2172 kgf/cm, 157 ft.lbf)

   2. Fully tighten the nut.

      Torque: 160 N.m (1632 kgf/cm, 118 ft.lbf)

Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

Refer to INSTALLATION [11/2020 - ]

Refer to PROCEDURE - Step 11

Refer to PROCEDURE - Step 12

Refer to ADJUSTMENT [11/2020 - ]

Refer to WORK PROCEDURE [11/2020 - 11/2021] , or refer to WORK PROCEDURE [11/2021 - 12/2022] , or refer to WORK PROCEDURE [12/2022 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ]
