Adjustment [11/2020 - ]: Procedure
- REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
Refer to PROCEDURE - Step 7
- REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
Refer to PROCEDURE - Step 7
- REMOVE REAR SUSPENSION BRACE COVER
Refer to PROCEDURE - Step 7
- DRAIN HYBRID TRANSAXLE FLUID
- Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the FCV with motor transaxle assembly.
- Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the FCV with motor transaxle assembly and drain the hybrid transaxle fluid.
- Using a 10 mm hexagon socket wrench, install the drain plug and a new gasket to the FCV with motor transaxle assembly.
Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)
- Using a 10 mm hexagon socket wrench, temporarily install the filler plug and gasket to the FCV with motor transaxle assembly.
HINT:
Reuse the old gasket as the filler plug will be removed again.
- Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the FCV with motor transaxle assembly.
- ADD HYBRID TRANSAXLE FLUID
- Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the FCV with motor transaxle assembly.

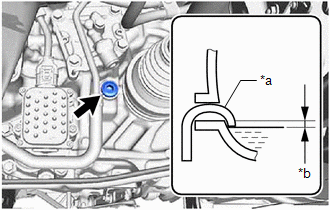

*a Filler Nozzle *b 0 to 8 mm (0 to 0.315 in.) - Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 8 mm (0 to 0.315 in.) from the bottom lip of the filler plug opening. [#]NOTE:
- When adding hybrid transaxle fluid, make sure that the vehicle is level.
- Use Toyota Genuine ATF WS.
Using hybrid transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transmission of your vehicle.
- Be sure to fully insert the filler nozzle into the filler plug opening.
- Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening.
- Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
- Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the FCV with motor transaxle assembly.
Hybrid Transaxle Fluid Standard Capacity (for Reference)
5.6 liters (5.9 US qts, 4.9 Imp. qts)
- After adding hybrid transaxle fluid, leave the vehicle for 30 seconds so that the hybrid transaxle fluid surface can become still again, and then check that the hybrid transaxle fluid level is between 0 to 8 mm (0 to 0.315 in.) from the bottom lip of the filler plug opening. (If the hybrid transaxle fluid level is low, repeat this procedure from step [#].)NOTE:
After adding hybrid transaxle fluid, make sure to check the hybrid transaxle fluid level.
- Using a 10 mm hexagon socket wrench, temporarily install the filler plug and gasket to the FCV with motor transaxle assembly.
HINT:
Reuse the old gasket as the filler plug will be removed again.
- Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the FCV with motor transaxle assembly.
- BLEED AIR FROM HYBRID TRANSAXLE FLUID LINE NOTE:
If the oil cooler hose is removed, the oil cooler assembly, the oil pump assembly (for Mechanical Type), the oil pump assembly (for Electric Type) is removed or the FCV with motor transaxle assembly is removed, perform the following work.
- Depress and hold the brake pedal.
- Turn the ignition switch to ON (READY).NOTE:
To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system, are off.
- Perform the "Control the Motor/Generator Cooling Oil Pump" Active Test for 30 seconds.
Powertrain > EV > Active Test
Tester Display Control the Motor/Generator Cooling Oil Pump
- INSPECT HYBRID TRANSAXLE FLUID
See step 4
- INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
Refer to PROCEDURE - Step 7
- INSTALL REAR SUSPENSION BRACE COVER
Refer to PROCEDURE - Step 7
- INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
Refer to PROCEDURE - Step 7
- INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
Refer to PROCEDURE - Step 7
