Installation [11/2020 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cutout	*b	Stopper
   	Front of the Vehicle	-	-

   1. Install the 2 rear stabilizer bushings to the outside of the stoppers on the rear stabilizer bar.
      NOTE:

      • Be sure to install the stoppers so that each cutout faces the inside of the vehicle.
      • Be sure to install the rear stabilizer bushings so that each cutout faces the front of the vehicle.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Arrow Mark	-	-
   	Front of the Vehicle	-	-

   1. Install the rear No. 1 stabilizer bar bracket LH to the rear stabilizer bushing.
      NOTE:

      Be sure to install the rear No. 1 stabilizer bar bracket LH so that each arrow mark faces the front of the vehicle.

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

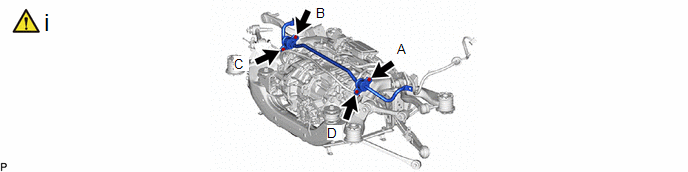

   1. Install the rear stabilizer bar with the 4 bolts.

      Torque: 51 N.m (520 kgf/cm, 38 ft.lbf)

      NOTE:

      Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C), (D), and (A).

1. Perform the same procedure as for the LH side.

Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - ]
