Disassembly [11/2020 - 12/2023]: Procedure

  1. REMOVE POSITION CONTROL ECU ASSEMBLY LH (w/ Memory)

    Refer to PROCEDURE - Step 3 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - 12/2023]

  2. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 3 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - 12/2023]

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 3 [11/2020 - ] , or refer to PROCEDURE - Step 3 [11/2020 - ] , or refer to PROCEDURE - Step 3 [11/2020 - ]

  4. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 4 [11/2020 - ] , or refer to PROCEDURE - Step 4 [11/2020 - ] , or refer to PROCEDURE - Step 4 [11/2020 - ]

  5. REMOVE FRONT SEAT FRONT CUSHION SHIELD LH

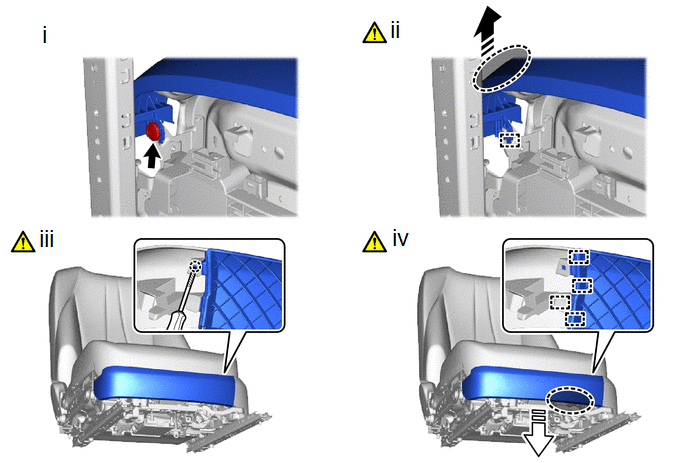

    1. GTY1016444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Remove the clip.
      2. Place your hands at the position shown in the illustration and pull in the removal direction (1) to detach the guide.
      3. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      4. Place your hands at the position shown in the illustration and pull in the removal direction (1) to detach the guide and remove the front seat front cushion shield LH.
  6. REMOVE FRONT SEAT CUSHION SHIELD LH (for 8 Way Seat Type)

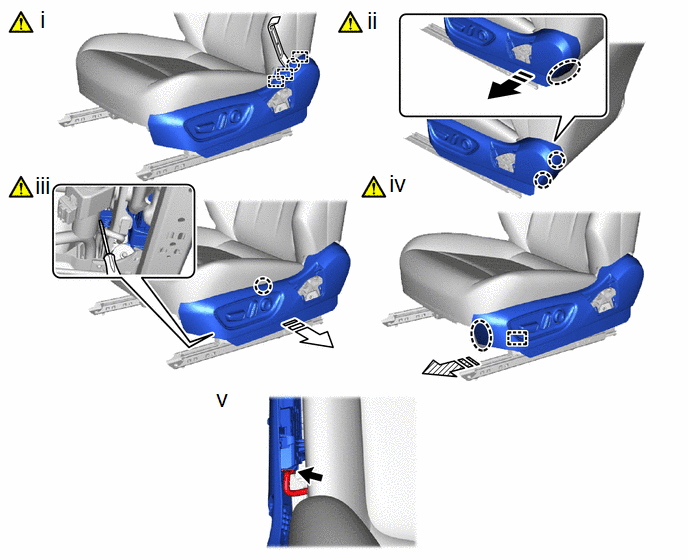

    1. GTY1017039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)
      1. Using moulding remover A, detach the claw and guide.
      2. Place your hands at the position shown in the illustration and pull in the removal direction (1) to detach the claw.
      3. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      4. Place your hands at the position shown in the illustration and pull in the removal direction (3) to detach the guide.
      5. Disconnect the connector and remove the front seat cushion shield LH.

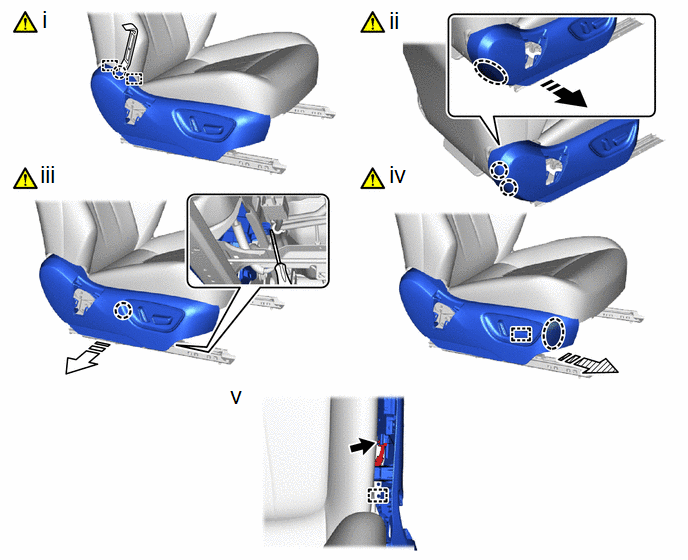

  7. REMOVE FRONT SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
    1. GTY1016523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)
      1. Using moulding remover A, detach the claw and guide.
      2. Place your hands at the position shown in the illustration and pull in the removal direction (1) to detach the claw.
      3. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      4. Place your hands at the position shown in the illustration and pull in the removal direction (3) to detach the guide.
      5. Disconnect the connector and detach the clamp to remove the front seat cushion shield RH.
  8. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. GTY1017032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using moulding remover A, detach the claw and remove the slide and vertical power seat switch knob.
  9. REMOVE RECLINING POWER SEAT SWITCH KNOB
    1. GTY1016441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using moulding remover A, detach the claw and remove the reclining power seat switch knob.
  10. REMOVE FRONT INNER SEAT CUSHION SHIELD LH (for 8 Way Seat Type)

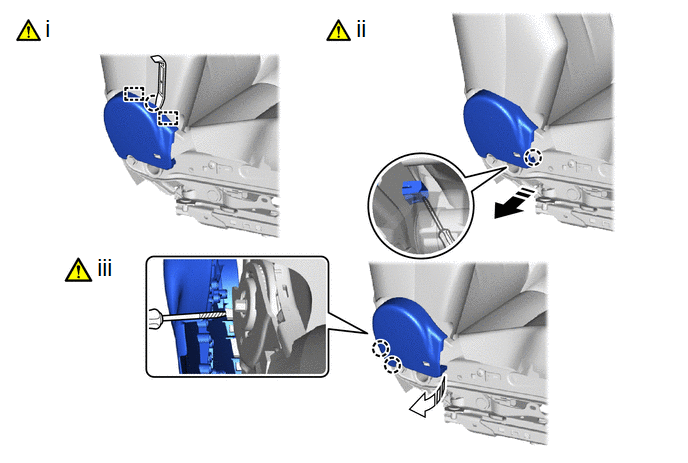

    1. GTY1017106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Open in this Direction
      1. Using moulding remover A, detach the claw and guide.
      2. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      3. Open the front inner seat cushion shield LH as shown in the illustration and using a thin-bladed screwdriver, detach the claw and remove the front inner seat cushion shield LH.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  11. REMOVE FRONT INNER SEAT CUSHION SHIELD RH (for 4 Way Seat Type)

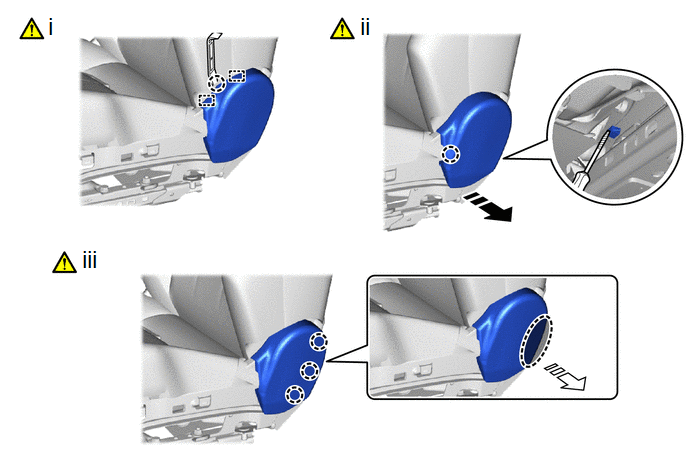

    1. GTY1016617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Using moulding remover A, detach the claw and guide.
      2. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      3. Place your hands at the position shown in the illustration and pull in the removal direction (2) to detach the claw and remove the front inner seat cushion shield RH.
  12. REMOVE NO. 2 LOWER SEAT TRACK SPACER (for 8 Way Seat Type)

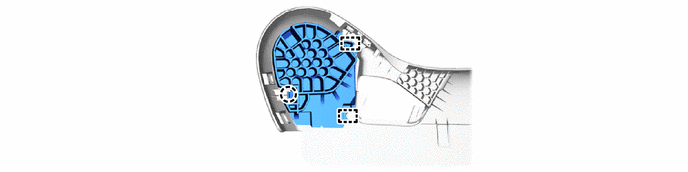

    1. GTY1016713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 LOWER SEAT TRACK SPACER (for 4 Way Seat Type)
    1. Use the same procedure described for the No. 2 lower seat track spacer.
  14. REMOVE FRONT POWER SEAT SWITCH LH (for 8 Way Seat Type)

    Refer to PROCEDURE - Step 8 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 8 [12/2022 - 12/2023]

  15. REMOVE FRONT POWER SEAT SWITCH RH (for 4 Way Seat Type)

    Refer to PROCEDURE - Step 9 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 9 [12/2022 - 12/2023]

  16. REMOVE FRONT SEATBACK ASSEMBLY LH

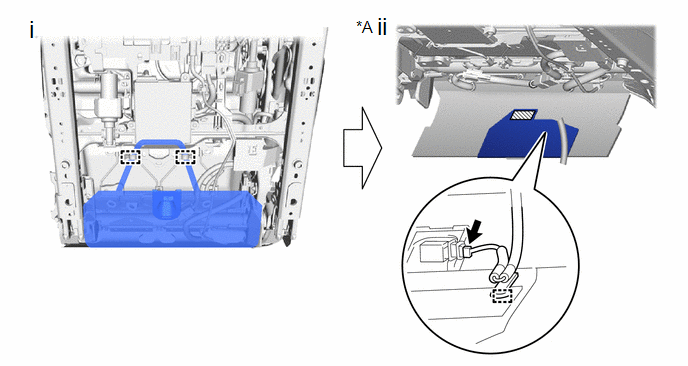

    1. GTY1017753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Foot light - -
      Fastener - -
      1. Disconnect the band from the hook.
      2. w/ Foot light:

        1. Detach the fastener.

        2. Disconnect the connector.

        3. Detach the clamp.

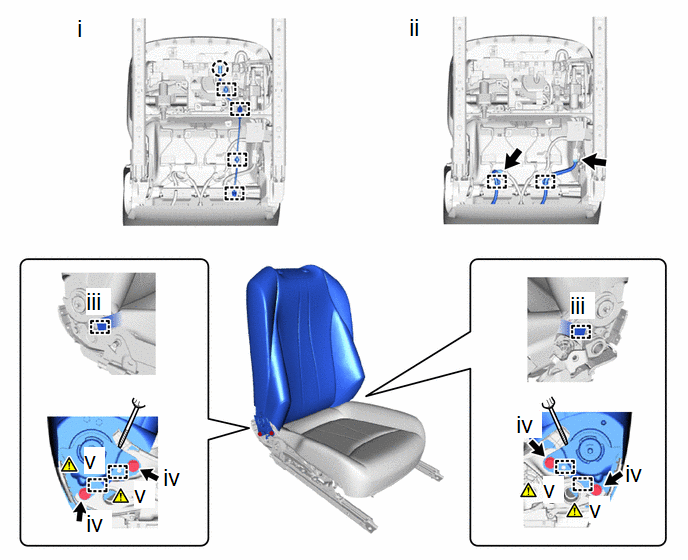

    2. GTY1016909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the claw and clamp.
      2. Disconnect the conector and detach the clamp.
      3. Detach the hook.
      4. Remove the 4 bolts.
      5. Using a screwdriver, detach the guide and remove the front seatback assembly LH.

        HINT:

        Tape the screwdriver tip before use.

  17. REMOVE FRONT SEAT CUSHION BRACKET LH (w/ Foot light)
    1. GTY1016590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  18. REMOVE NO. 3 INTERIOR ILLUMINATION LIGHT ASSEMBLY (w/ Foot light)
    1. GTY1016939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the No. 3 interior illumination light assembly.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  19. REMOVE FRONT SEAT HEADREST SUPPORT

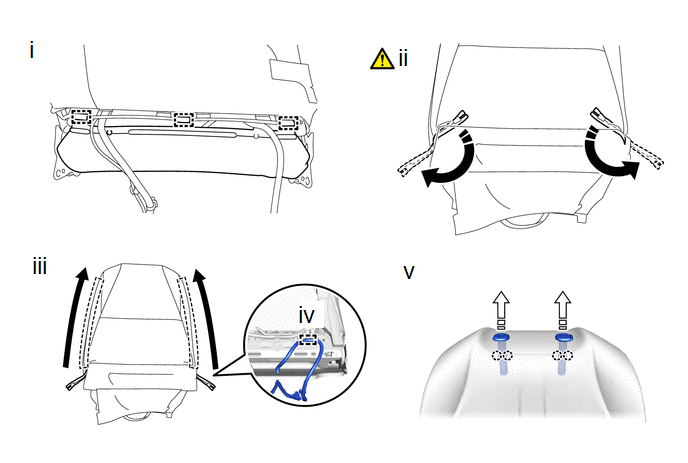

    1. GTY1017772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Detach the hook.
      2. Pull out the fastener as shown in the illustration.
      3. Open the 2 fasteners.
      4. Detach the clamp.
      5. Detach the claw and remove the 2 front seat headrest supports.
  20. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD LH
    1. GTY1017349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  21. REMOVE SEPARATE TYPE FRONT SEATBACK COVER LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Be careful not to dirty or damage the separate type front seatback cover LH and the separate type front seatback pad LH.

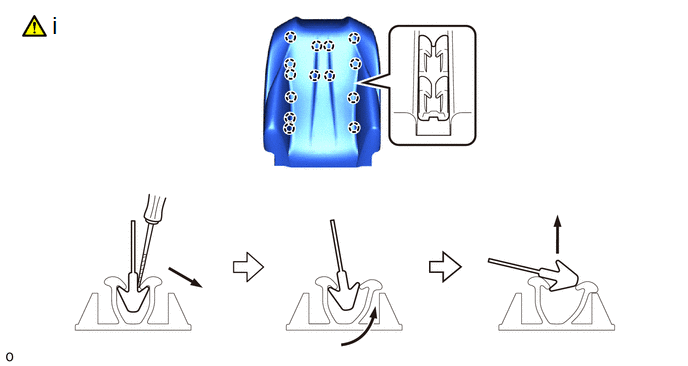

    1. GTY1016982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw to remove the separate type front seatback cover LH from the separate type front seatback pad LH as shown in the illustration.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  22. REMOVE FRONT SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 12 [12/2022 - 12/2023]
  23. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 11 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 11 [12/2022 - 12/2023]
  24. REMOVE FRONT NO. 2 SEAT WIRE LH

    HINT:

    The illustrations are representative examples, and details may differ.

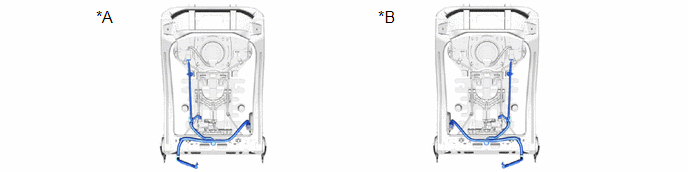

    1. GTY1017355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Driver Side *B for Front Passenger Side
  25. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (for 8 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 9 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 9 [12/2022 - 12/2023]
  26. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY RH (for 4 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SEATBACK FELT
    1. GTY1016470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  28. REMOVE SEATBACK CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)

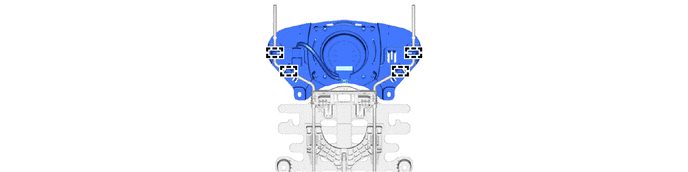

    1. GTY1016696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

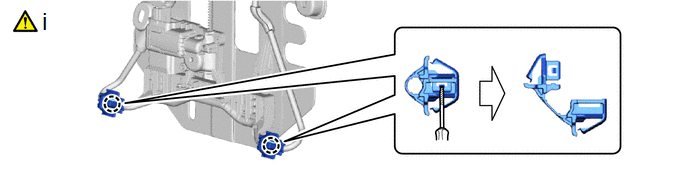

  29. REMOVE FRONT SEATBACK EDGE PROTECTOR
    1. GTY1017261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the 2 front seatback edge protectors.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  30. REMOVE FRONT SEATBACK HOOK
    1. GTY1017230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the 2 front seatback hooks.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  31. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD LH

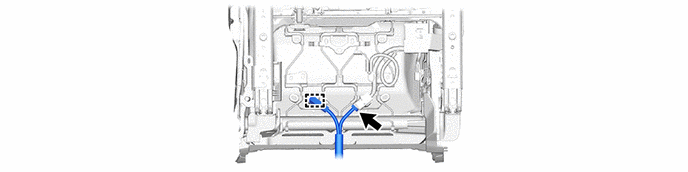

    1. GTY1016987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

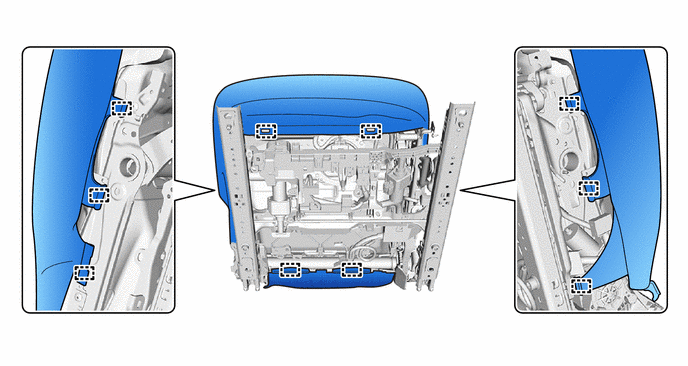

    2. GTY1016985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Be careful not to dirty or damage the separate type front seat cushion cover LH and the separate type front seat cushon pad LH.
    1. GTY1016450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Band - -
      Remove in this Direction - -
      1. Detach the band.

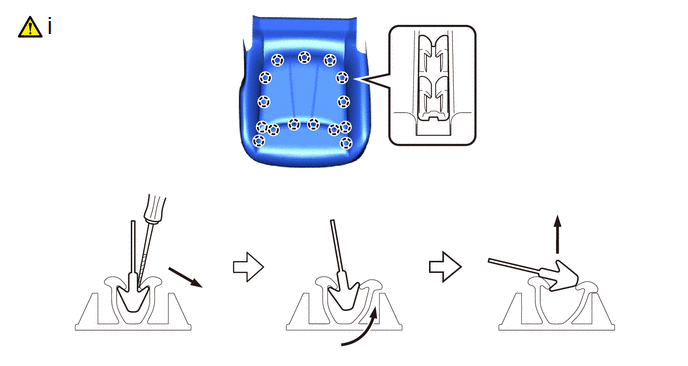

    2. GTY1017487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw to remove the separate type front seat cushion cover LH from the separate type front seat cushion pad LH as shown in the illustration.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  33. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 13 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 13 [12/2022 - 12/2023]
  34. REMOVE SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH (w/ Climate Control Seat System)

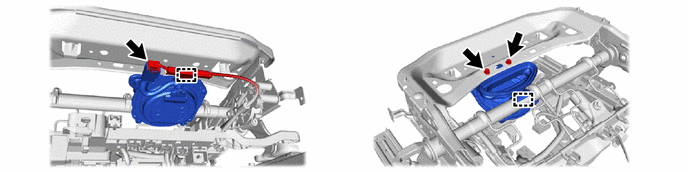

    1. GTY1016972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH (for 8 Way Seat Type)

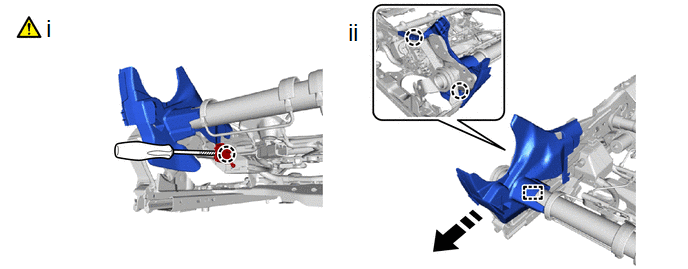

    1. GTY1016578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      2. Detach the claw and hook to remove the LH seat reclining adjuster inside cover LH as shown in the illustration.

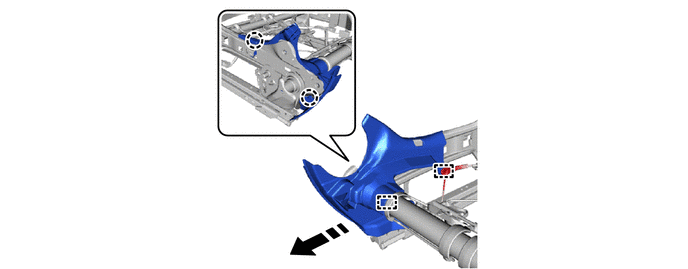

  36. REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER LH (for 4 Way Seat Type)
    1. GTY1017188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  37. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH (for 8 Way Seat Type)

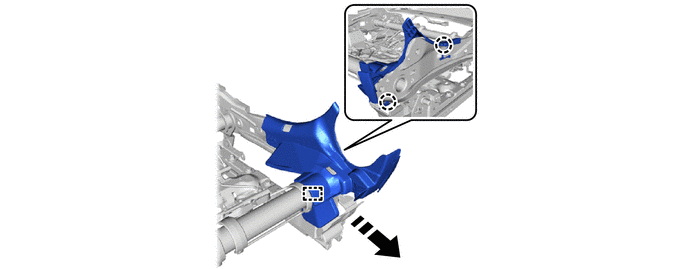

    1. GTY1016556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

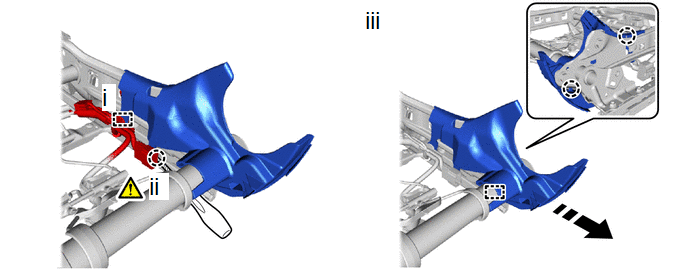

  38. REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER RH (for 4 Way Seat Type)
    1. GTY1017095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Detach the clamp.
      2. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      3. Detach the claw and hook to remove the RH seat reclining adjuster inside cover RH as shown in the illustration.
  39. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for 8 Way Seat Type)

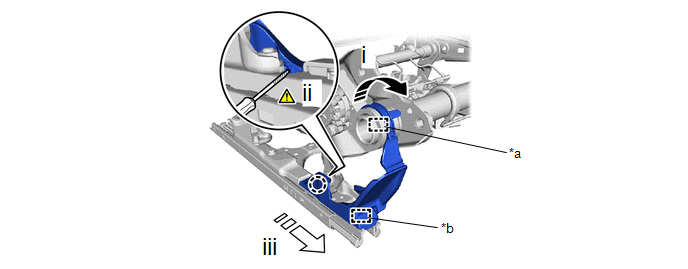

    1. GTY1016484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook *b Guide
      Remove in this Direction (1) Remove in this Direction (2)
      1. Pull in the removal direction (1) shown in the illustration to detach the hook.
      2. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      3. Slide in the removal direction (2) shown in the illustration to detach guide and remove the front seat lower cushion shield LH.
  40. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for 8 Way Seat Type)

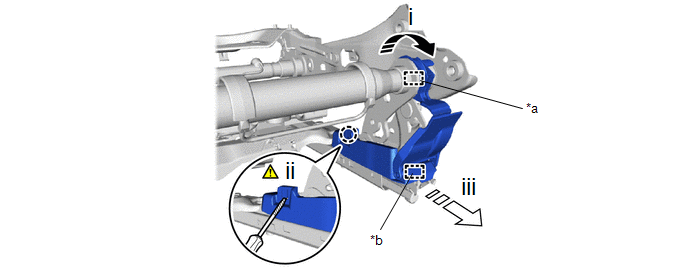

    1. GTY1017020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook *b Guide
      Remove in this Direction (1) Remove in this Direction (2)
      1. Pull in the removal direction (1) shown in the illustration to detach the hook.
      2. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      3. Slide in the removal direction (2) shown in the illustration to detach guide and remove the front seat lower cushion shield RH.
  41. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER LH (for 8 Way Seat Type)

    HINT:

    The illustrations are representative examples, and details may differ.

    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    • Detach each clamp of the front seat cushion wire harness holder LH and disconnect each connector.
    • Remove the front seat cushion wire harness holder LH together with the front seat wire LH.

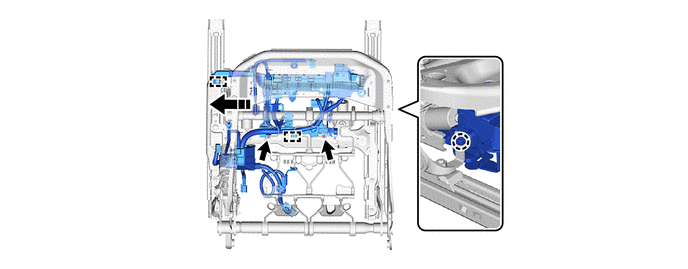

    1. GTY1017814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  42. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER RH (for 4 Way Seat Type)

    HINT:

    The illustrations are representative examples, and details may differ.

    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    • Detach each clamp of the front seat cushion wire harness holder RH and disconnect each connector.
    • Remove the front seat cushion wire harness holder RH together with the front seat wire RH.

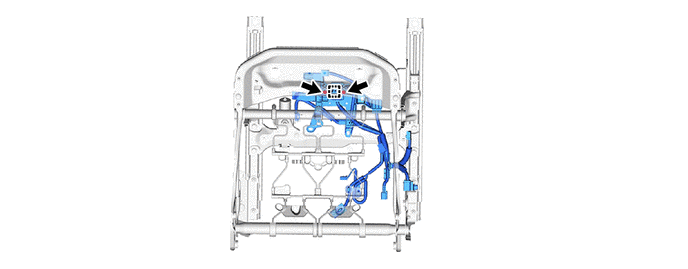

    1. GTY1016704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH

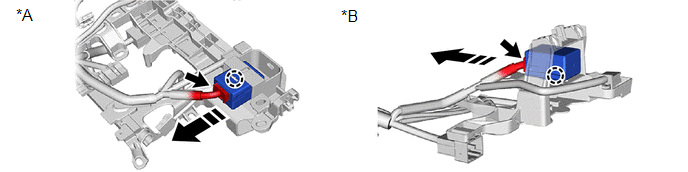

    1. GTY1016572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 8 Way Seat Type *B for 4 Way Seat Type
      Remove in this Direction - -
  44. REMOVE FRONT SEAT WIRE LH

    HINT:

    The illustrations are representative examples, and details may differ.

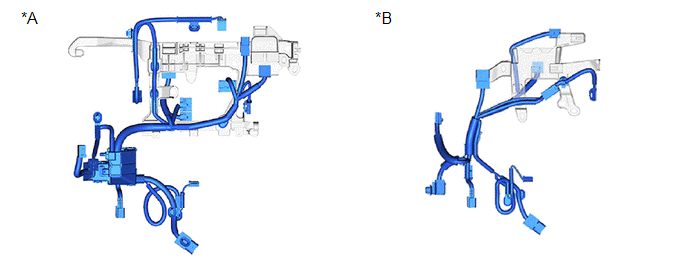

    1. GTY1016618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 8 Way Seat Type *B for 4 Way Seat Type
  45. REMOVE FRONT SEAT WIRE RH (for Front Passenger Side)

    HINT:

    The illustrations are representative examples, and details may differ.

    1. GTY1017254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE REAR SEAT WIRE LH (for Driver Side)

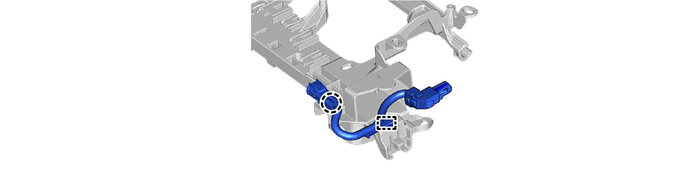

    1. GTY1017331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE FRONT NO. 1 SEAT CUSHION SHIELD (for 8 Way Seat Type)

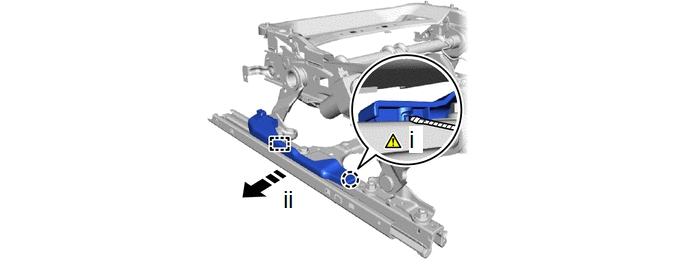

    1. GTY1016743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a thin-bladed screwdriver, detach the claw.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

      2. Pull in the removal direction shown in the illustration to detach the guide and remove the front No. 1 seat cushion shield.
  48. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH

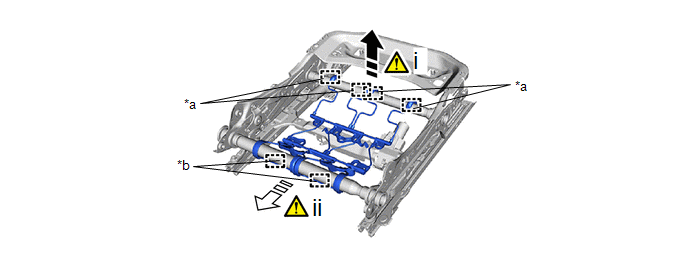

    1. GTY1017406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook A *b Hook B
      Remove in this Direction (1) Remove in this Direction (2)
      1. Pull in the removal direction (1) shown in the illustration to detach hook A.
      2. Pull in the removal direction (2) shown in the illustration to detach hook B and remove the front seat cushion spring sub-assembly LH.
  49. REMOVE UPPER SEAT TRACK RAIL COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure for the other side.

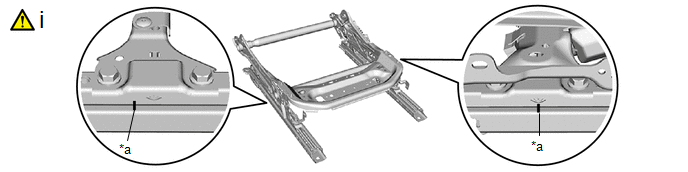

    1. GTY1017598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Place a matchmark on the front seat adjuster assembly LH.

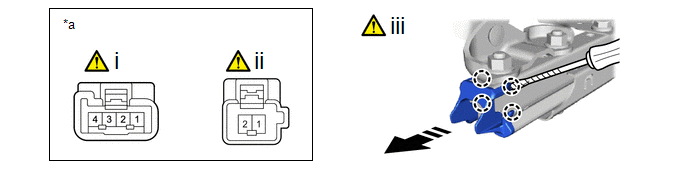

    2. GTY1016919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Terminal of the Slide Motor - -
      Remove in this Direction - -
      1. w/ Memory:

        1. Connect the No. 4 terminal of the slide motor to the positive (+) auxiliary battery terminal, and the No. 1 terminal to the negative (-) auxiliary battery terminal and then move the front seat adjuster assembly LH to the frontmost position.

        NOTE:

        After performing this procedure, initialize the seat ECU (position control ECU assembly).

      2. w/o Memory:

        1. Connect the No. 2 terminal of the slide motor to the positive (+) auxiliary battery terminal, and the No. 1 terminal to the negative (-) auxiliary battery terminal and then move the front seat adjuster assembly LH to the frontmost position.

      3. Using a thin-bladed screwdriver, detach the claw and remove the upper seat track rail cover.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  50. REMOVE REAR UPPER SEAT TRACK COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure for the other side.

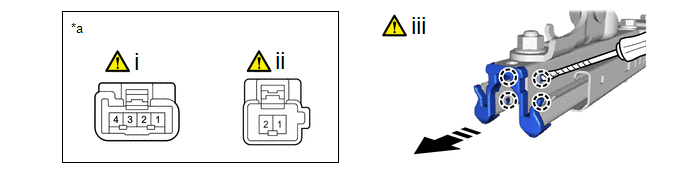

    1. GTY1017417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Terminal of the Slide Motor - -
      Remove in this Direction - -
      1. w/ Memory:

        1. Connect the No. 1 terminal of the slide motor to the positive (+) auxiliary battery terminal, and the No. 4 terminal to the negative (-) auxiliary battery terminal and then move the front seat adjuster assembly LH to the rearmost position.

        NOTE:

        After performing this procedure, initialize the seat ECU (position control ECU assembly).

      2. w/o Memory:

        1. Connect the No. 1 terminal of the slide motor to the positive (+) auxiliary battery terminal, and the No. 2 terminal to the negative (-) auxiliary battery terminal and then move the front seat adjuster assembly LH to the rearmost position.

      3. Using a thin-bladed screwdriver, detach the claw and remove the rear upper seat track cover.

        HINT:

        Tape the thin-bladed screwdriver tip before use.

  51. REMOVE POWER SEAT LIFTER MOTOR ASSEMBLY LH (for 8 Way Seat Type)

    Refer to PROCEDURE - Step 12 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 12 [12/2022 - 12/2023]

  52. REMOVE POWER SEAT TILT MOTOR ASSEMBLY LH (for 8 Way Seat Type)

    Refer to PROCEDURE - Step 11 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 11 [12/2022 - 12/2023]

scientia non olet · About LEMON Manuals
