Removal [11/2020 - 11/2021]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2020 - 12/2022]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2020 - 11/2021]
  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [11/2020 - 11/2021]

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

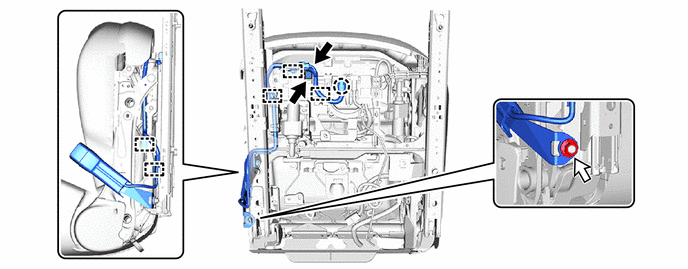

    1. GTY1017579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Nut
  4. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. for 8 Way Seat Type:

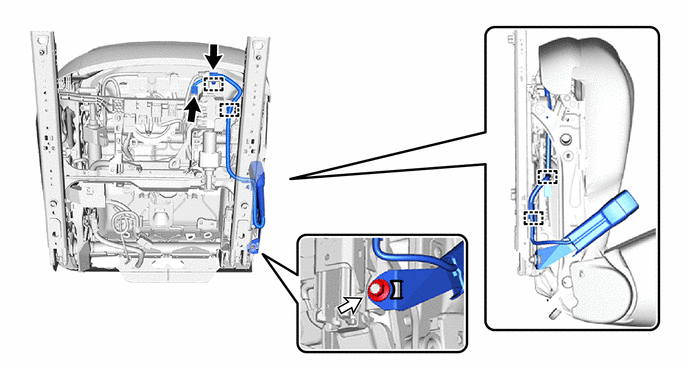

      GTY1016419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Nut
    2. for 4 Way Seat Type:

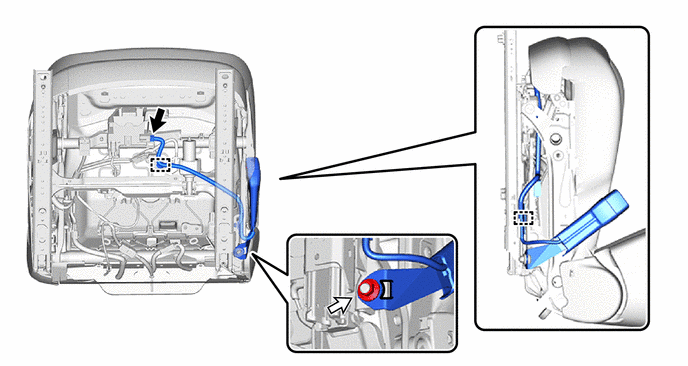

      GTY1017024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector Nut
