Removal [11/2020 - 11/2021]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2020 - 12/2022]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2020 - 11/2021]
  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [11/2020 - 11/2021]

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  4. REMOVE FRONT SEAT CUSHION SHIELD LH (for 8 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  5. REMOVE FRONT SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  6. REMOVE FRONT INNER SEAT CUSHION SHIELD LH (for 8 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 10
  7. REMOVE FRONT INNER SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 11
  8. REMOVE FRONT SEATBACK ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 16
  9. REMOVE FRONT SEAT HEADREST SUPPORT
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 19
  10. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD LH

    Refer to PROCEDURE - Step 20

  11. REMOVE SEPARATE TYPE FRONT SEATBACK COVER LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 21
  12. REMOVE FRONT SEATBACK HEATER ASSEMBLY LH

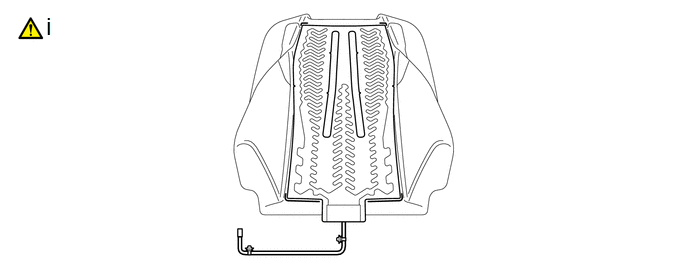

    1. GTY1018057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the tape and front seatback heater assembly LH.
        NOTE:
        • Do not reuse the front seatback heater assembly LH.
        • If the front seatback heater assembly LH is removed from the separate type front seatback pad LH, replace the separate type front seatback pad LH with new one.
