Removal [11/2021 - 12/2022]: Procedure
- PRECAUTION WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Refer to PRECAUTION [11/2020 - 12/2022]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- REMOVE FRONT SEAT ASSEMBLY LH
Refer to REMOVAL [11/2021 - 12/2022]
- REMOVE FRONT SEAT FRONT CUSHION SHIELD LH
Refer to PROCEDURE - Step 5 - REMOVE FRONT SEAT CUSHION SHIELD LH
Refer to PROCEDURE - Step 6 - REMOVE FRONT INNER SEAT CUSHION SHIELD LH
Refer to PROCEDURE - Step 3 - REMOVE FRONT SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 16 - REMOVE FRONT SEAT HEADREST SUPPORT
Refer to PROCEDURE - Step 19 - REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD LH
Refer to PROCEDURE - Step 31
- REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

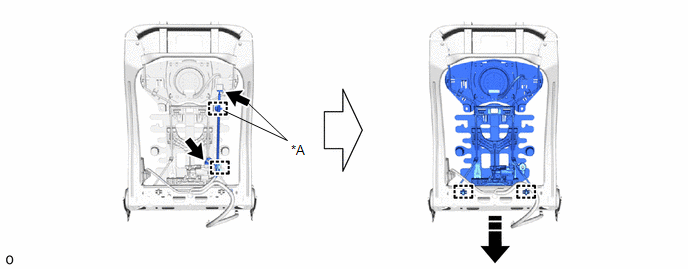

HINT: - Remove the lumbar support adjuster assembly LH together with the 2 front seatback edge protectors and the seatback felt.
- w/ Climate Control Seat System:
Remove the seatback climate control blower together.
- REMOVE SEATBACK FELT
Refer to PROCEDURE - Step 27
- REMOVE SEATBACK CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)
Refer to PROCEDURE - Step 28
- REMOVE FRONT SEATBACK EDGE PROTECTOR
Refer to PROCEDURE - Step 29
