Removal [12/2022 - 12/2023]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2022 - ]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - 12/2023]
  2. REMOVE FRONT SEAT ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure as for the LH side.
    Refer to REMOVAL [12/2022 - 12/2023]
  3. REMOVE OCCUPANT DETECTION ECU

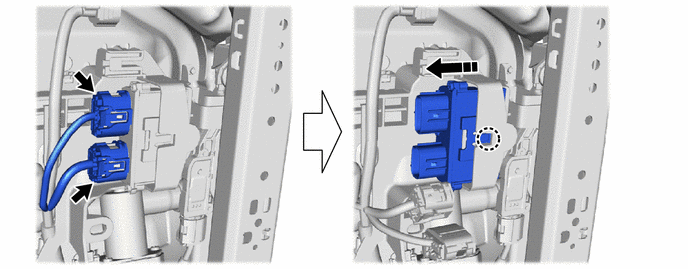

    1. for 8 Way Seat Type:
      GTY1016015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. for 4 Way Seat Type:
      GTY1017317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
