Removal [12/2022 - 12/2023]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2022 - ]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - 12/2023]
  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [12/2022 - 12/2023]

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  4. REMOVE FRONT SEAT CUSHION SHIELD LH (for 8 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  5. REMOVE FRONT SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  6. REMOVE SLIDE & VERTICAL POWER SEAT SWITCH KNOB
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  7. REMOVE RECLINING POWER SEAT SWITCH KNOB
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 9
  8. REMOVE FRONT POWER SEAT SWITCH LH (for 8 Way Seat Type)

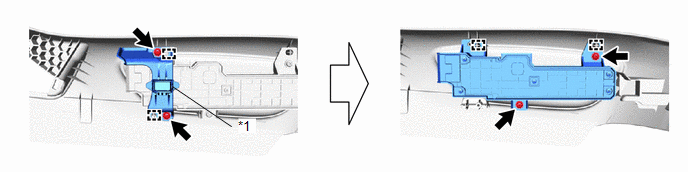

    1. GTY1018227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Seat Adjuster Shield Clamp Bracket LH - -
  9. REMOVE FRONT POWER SEAT SWITCH RH (for 4 Way Seat Type)

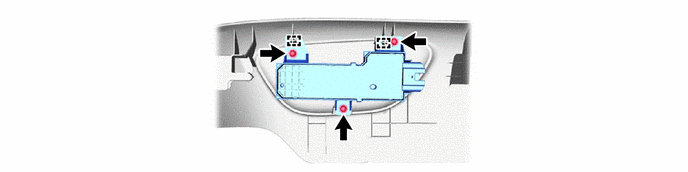

    1. GTY1017954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
