Removal [08/2015 - ]: Procedure

  1. REMOVE REAR NO. 2 SEAT HEADREST ASSEMBLY LH
  2. REMOVE REAR SEAT CUSHION HINGE COVER LH
    1. Operate the rear seat headrest handle and lower the headrest.
      GTY240925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

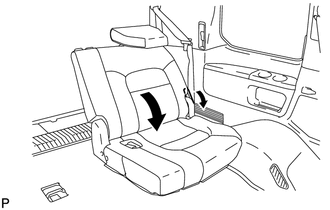

    2. Operate the reclining adjuster release handle and fold down the seat.
      GTY228352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

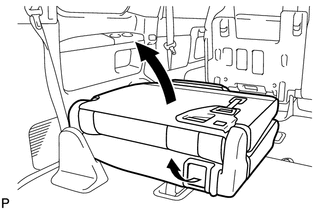

    3. Operate the seat cushion lock release lever and move the seat to the storage position.
      GTY240926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

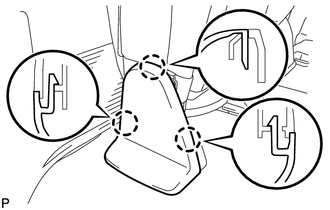

    4. Using a screwdriver, detach the 3 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

      GTY611697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR NO. 2 SEAT HINGE COVER LH
    GTY538775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

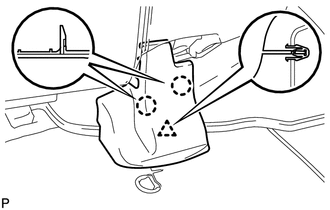

    1. Detach the 2 claws and clip, and then remove the cover.
  4. REMOVE REAR NO. 2 SEAT ASSEMBLY
    GTY228341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

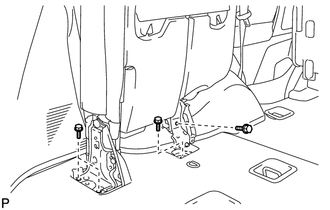

    1. Remove the 4 bolts and seat assembly.
      NOTE:

      Be careful not to damage the vehicle body.

  5. REMOVE REAR STEP COVER

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 8 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  6. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 9 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 10 [08/2019 - ]

  7. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE

    Refer to PROCEDURE - Step 11 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 11 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  8. REMOVE LUGGAGE COMPARTMENT NO. 1 TRIM HOOK

    Refer to PROCEDURE - Step 22 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 22 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 23 [08/2019 - ]

  9. REMOVE REAR SEAT COVER CAP

    Refer to PROCEDURE - Step 23 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 23 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 25 [08/2019 - ]

  10. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 24 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 24 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 - ]

  11. REMOVE REAR SEAT COVER CAP LH
  12. REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY LH
    1. Detach the 4 claws and remove the seat lock control lever.
  13. REMOVE REAR ROOF NO. 1 AIR DUCT (for LH Side)

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 19 [08/2019 - ]

  14. REMOVE NO. 1 WOOFER BOX SPEAKER ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 10 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  15. REMOVE FOLD SEAT LEG LOCK SUBASSEMBLY

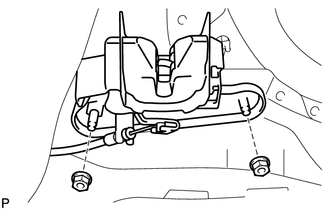

    1. Detach the 2 cable clamps.
    2. Remove the 2 nuts and fold seat leg lock.
      GTY538776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 3 SEAT CUSHION COVER

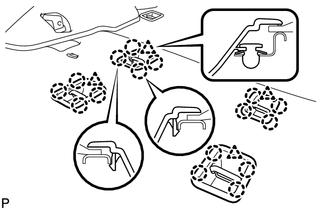

    1. Detach the 4 clips and 16 claws, and then remove the 4 seat cushion covers.
      GTY611228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT LOCK STRIKER SUBASSEMBLY
    1. Fold back the floor carpet.
    2. Remove the 8 bolts and 4 seat lock strikers.
      GTY538777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
