Removal [08/2015 - 08/2019]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - ] ).
- REMOVE REAR NO. 2 SEAT ASSEMBLY RH
- Remove the rear no. 2 seat assembly RH (Refer to REMOVAL [08/2015 - ]
).
HINT:
Use the same procedures described for the LH side.
- Remove the rear no. 2 seat assembly RH (Refer to REMOVAL [08/2015 - ]
).
- REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
Refer to PROCEDURE - Step 11 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 11 [08/2017 - ]
- REMOVE REAR STEP COVER
Refer to PROCEDURE - Step 8 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 8 [08/2017 - ]
- REMOVE REAR DOOR SCUFF PLATE RH
Refer to PROCEDURE - Step 10 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 10 [08/2017 - ]
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 22 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 22 [08/2017 - ]
- REMOVE REAR SEAT COVER CAP
Refer to PROCEDURE - Step 23 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 23 [08/2017 - ]
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
Refer to PROCEDURE - Step 25 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 25 [08/2017 - ]

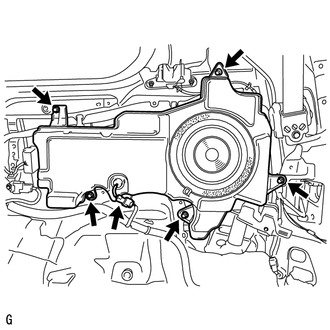

- REMOVE NO. 1 WOOFER BOX SPEAKER ASSEMBLY
