Disassembly [02/2017 - 10/2017]: Procedure

  1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

    Refer to PROCEDURE - STEP 6

  2. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - STEP 7

  3. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
    1. Disengage the claws and clips to remove the back door trim upper panel assembly.
      GTY772011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BACK DOOR SIDE GARNISH LH
    1. Disengage the claws and clips to remove the back door side garnish LH.
      GTY756321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE PACKAGE TRAY TRIM GARNISH HOOK

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Remove the screw.
      GTY756316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the package tray trim garnish hook.
      GTY772009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. Disengage the clips to remove the back door trim panel assembly.
      GTY756323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

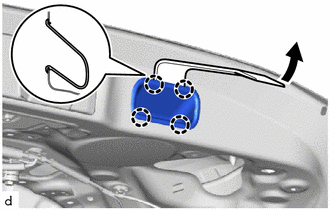

  8. REMOVE DOOR PULL HANDLE
    1. Using a moulding remover D, disengage the claws to remove the door pull handle.
      GTY746264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 BACK DOOR SERVICE HOLE COVER
    1. Disengage the claws to remove the No. 1 back door service hole cover.
      GTY756319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER

    HINT:

    Use the same procedure as for the No. 1 back door service hole cover.

  11. REMOVE NO. 3 BACK DOOR SERVICE HOLE COVER
    1. Disengage the claws to remove the No. 3 back door service hole cover.
      GTY756320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BACK DOOR SERVICE HOLE COVER LH
    1. Disengage the claws to remove the back door service hole cover LH.
      GTY772010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

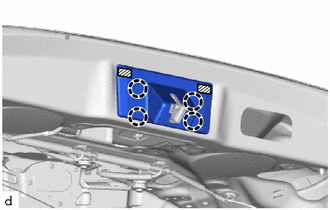

  14. REMOVE BACK DOOR LOCK COVER
    1. Disengage the claws.
      GTY762550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Remove the double-sided tape and back door lock cover.
      NOTE:

      Remove any remaining double-sided tape from the back door.

  15. REMOVE BACK DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - STEP 8

  16. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - STEP 5

  17. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - STEP 7

  18. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - STEP 6

  19. REMOVE BACK DOOR LOWER STOPPER
    1. Remove the bolt.
      GTY756318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the back door lower stopper.

      HINT:

      Use the same procedure for the RH side and LH side.

  20. REMOVE REAR SPOILER ASSEMBLY

    Refer to PROCEDURE - STEP 4

  21. REMOVE REAR WASHER NOZZLE

    Refer to PROCEDURE - STEP 2

  22. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - STEP 7

  23. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

  24. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - STEP 2

  25. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - STEP 2

  26. REMOVE BACK DOOR PANEL CUSHION
    1. Disengage the claws to remove the 2 back door panel cushions.
      GTY756328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

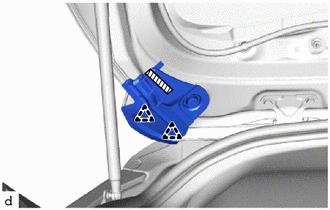

  27. REMOVE NO. 2 BACK DOOR PANEL PROTECTOR
    1. Disengage the clips.
      GTY752165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Remove the double-sided tape and No. 2 back door panel protector.
      NOTE:

      Remove any remaining double-sided tape from the back door.

  28. REMOVE NO. 1 BACK DOOR PANEL PROTECTOR

    HINT:

    Use the same procedure for the No. 2 back door panel protector.

  29. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - STEP 2

  30. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE REAR LIGHT PACKING

    Refer to PROCEDURE - STEP 3

  32. REMOVE HOLE PLUG (w/ Grommet)
    1. Remove the hole plug.
      GTY847308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 2 BACK DOOR NAME PLATE

    Refer to PROCEDURE - STEP 1

  34. REMOVE NO. 1 BACK DOOR EMBLEM

    Refer to PROCEDURE - STEP 2
