Removal [02/2017 - ]: Procedure

REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
Refer to PROCEDURE - Step 3 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 3 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 3 [09/2019 - 12/2021] , or refer to PROCEDURE - Step 3 [12/2021 - ]
REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 4 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 4 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 4 [09/2019 - 12/2021] , or refer to PROCEDURE - Step 4 [12/2021 - ]
REMOVE BACK DOOR SIDE GARNISH RH
HINT:

Use the same procedure as for the LH side.
REMOVE BACK DOOR TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 7 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 7 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 7 [09/2019 - 12/2021] , or refer to PROCEDURE - Step 7 [12/2021 - ]

REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

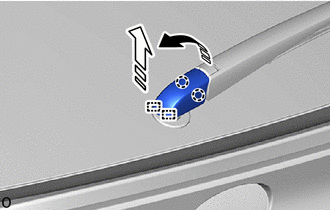

Slide the rear wiper arm head cap as shown in the illustration to disengage the 2 claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

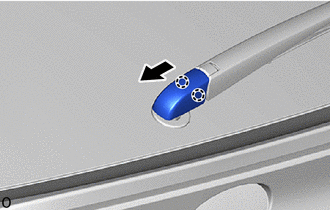

Disengage the claws and guides to remove the rear wiper arm head cap as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

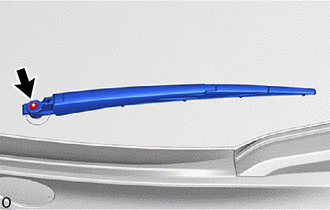

Remove the nut and rear wiper arm and blade assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR WIPER MOTOR GROMMET

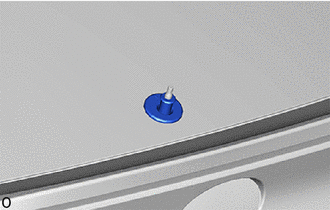

Remove the rear wiper motor grommet.

REMOVE REAR WIPER MOTOR ASSEMBLY

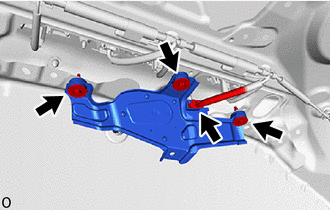

Disconnect the connector.

Remove the 2 bolts.
Loosen the bolt to remove the rear wiper motor assembly.
HINT:

Remove the bolt and rear wiper motor assembly as a set.
