Removal [02/2017 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to REMOVAL [02/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY

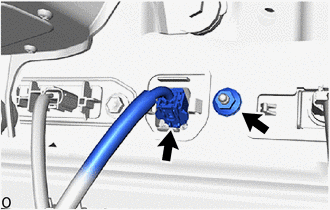

    1. Disconnect the connector.
      GTY744118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut.

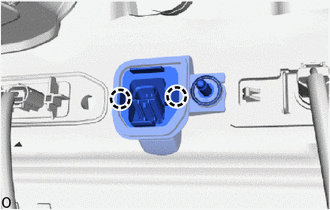

    3. Disengage the claws to remove the rear television camera assembly.
      GTY774213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
