Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to REMOVAL [02/2017 - 09/2019]

  2. REMOVE REAR LIGHT ASSEMBLY

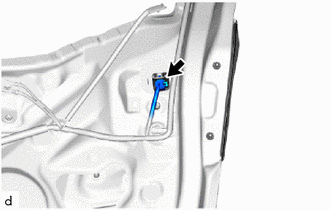

    1. Disconnect the connector.
      GTY767195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

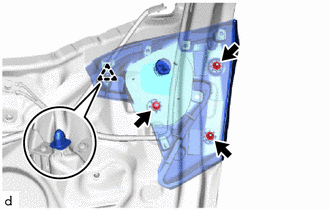

    2. Remove the 3 nuts.
      GTY774396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clip to remove the rear light assembly.
  3. REMOVE REAR LIGHT PACKING

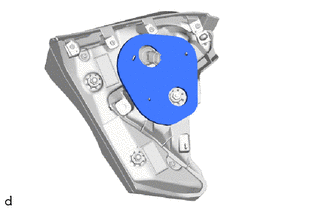

    1. Remove the rear light packing.
      GTY748893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
