Removal [02/2017 - ]: Procedure

  1. REMOVE REAR SPOILER ASSEMBLY

    Refer to REMOVAL [02/2017 - ]

  2. REMOVE REAR WASHER NOZZLE

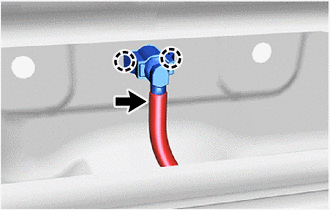

    1. Disconnect the rear washer hose.
      GTY749458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claws to remove the rear washer nozzle.
