Removal [02/2017 - ]: Procedure

  1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

    Refer to PROCEDURE - Step 3 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 3 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 3 [09/2019 - 12/2021] , or refer to PROCEDURE - Step 3 [12/2021 - ]

  2. REMOVE NO. 2 BACK DOOR PANEL PROTECTOR

    Refer to PROCEDURE - Step 27 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 28 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 30 [09/2019 - 12/2021] , or refer to PROCEDURE - Step 28 [12/2021 - ]

  3. REMOVE NO. 1 BACK DOOR PANEL PROTECTOR

    HINT:

    Use the same procedure as for the No. 2 back door panel protector side.

  4. REMOVE REAR SPOILER ASSEMBLY

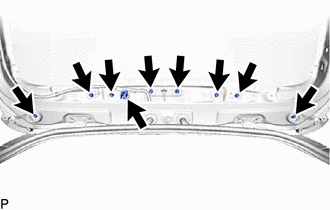

    1. Disconnect the connector.
      GTY755839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 nuts.

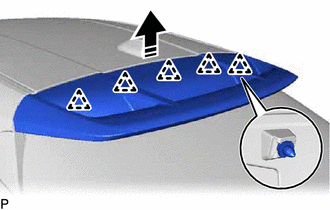

    3. Disengage the clips as shown in the illustration to remove the rear spoiler assembly.
      GTY748688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
