Removal [01/2018 - 11/2018]: Procedure

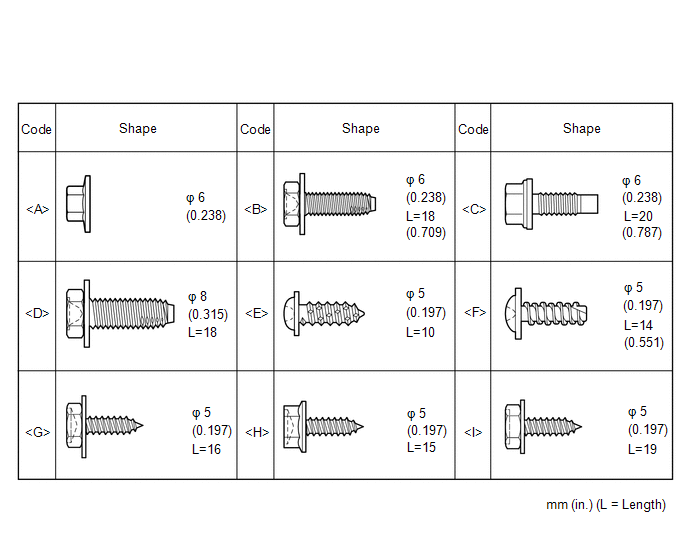

- TABLE OF BOLT, SCREW, NUT
HINT:
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.
Refer to PRECAUTION [06/2015 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
HINT:
If the AUTO-AWAY is not disabled before disconnecting the negative (-) auxiliary battery terminal, the steering column cover will be difficult to remove. So, disable the AUTO-AWAY before disconnecting the negative (-) auxiliary battery terminal.
Refer to CUSTOMIZE PARAMETERS [06/2015 - ]
- REMOVE FRONT SEAT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to REMOVAL [06/2015 - 11/2018]
- REMOVE FRONT DOOR SCUFF PLATE LH
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- REMOVE COWL SIDE TRIM BOARD LH
- REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

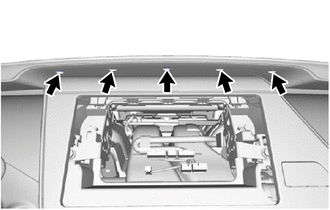

- As shown in the illustration, use moulding remover A to raise up the No. 1 instrument panel speaker panel sub-assembly.
Remove in this Direction - Lift up in the direction shown by the arrow in the illustration to disengage the claws and clips.
- Disengage the guides to remove the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
Remove in this Direction
- As shown in the illustration, use moulding remover A to raise up the No. 1 instrument panel speaker panel sub-assembly.
- REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
HINT:
Use the same procedure as for the No. 1 side.
- REMOVE NO. 2 FRONT SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 INSTRUMENT PANEL CUSHION
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- Disconnect the front door opening trim weatherstrip LH.
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT PILLAR GARNISH LH

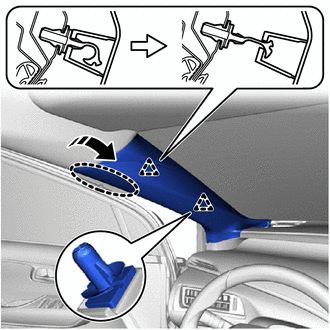

- Disconnect the 2 front pillar garnish clips from the front pillar garnish LH as shown in the illustration.
Place Hands Here Remove in this Direction - Using needle-nose pliers with their tips ends wrapped in protective tape, turn the front pillar garnish clip clockwise 90°and remove it from the front pillar garnish LH.
*a Protective Tape NOTE:- If the front pillar garnish clip is not removed from the vehicle and has no damage, the clip can be reused.
- If the front pillar garnish clip is removed from the vehicle, replace it with a new one.
- Disengage the guides to remove the front pillar garnish LH as shown in the illustration.
Remove in this Direction - Remove the 2 front pillar garnish clips from the body.
- Protect the curtain shield airbag:
- Disconnect the 2 front pillar garnish clips from the front pillar garnish LH as shown in the illustration.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE INSTRUMENT CENTER UPPER CLUSTER FINISH PANEL
- REMOVE INSTRUMENT CENTER PANEL REGISTER ASSEMBLY
- Open the glove compartment door assembly.
- Apply protective tape as shown in the illustration.
Protective Tape - Disengage the claws and clips as shown in the illustration.
Place Hands Here Remove in this Direction NOTE:The claws (A) in the illustration are 2-stage, so in this step, disengage the end portions.

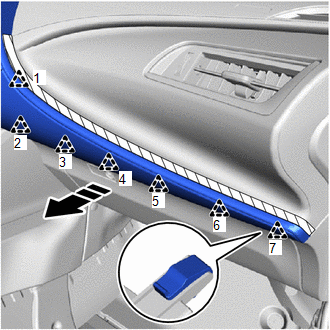

- Disengage the clips and claws in the order shown in the illustration.
Remove in this Direction - Lift up in the direction shown by the arrow (1) in the illustration, pull in the direction shown by the arrow (2) in the illustration to disengage the clips, and remove the instrument center panel register assembly.
Remove in this Direction (1) Remove in this Direction (2) NOTE:The claws in the illustration are 2-stage, so in this step, disengage the tips.
- Disconnect the connector.

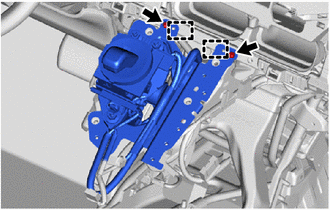

- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 6
- REMOVE LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 5
- REMOVE UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 6
- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE INSTRUMENT SIDE PANEL LH
- REMOVE INSTRUMENT PANEL LOWER FINISH PANEL

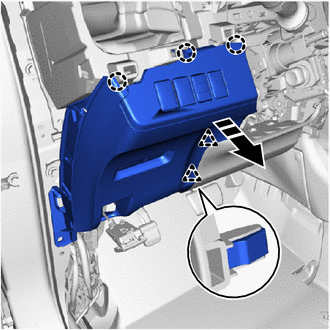

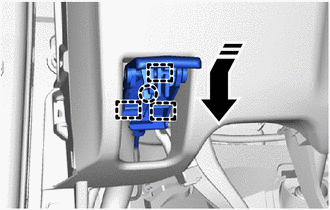

- Disengage the claw and guides to remove the hood lock control lever sub-assembly as shown in the illustration.
Remove in this Direction - Remove the bolt <C>.
- Disengage the claws and clips to remove the instrument panel lower finish panel as shown in the illustration.
Remove in this Direction - Disconnect the connectors and disengage the clamp.
- Disengage the claw and guides to remove the hood lock control lever sub-assembly as shown in the illustration.
- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE INSTRUMENT SIDE PANEL RH
HINT:
Use the same procedure as for the LH side.
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
- REMOVE FRONT CONSOLE BOX COVER
See step 12
- REMOVE CONSOLE COMPARTMENT BOX ASSEMBLY
See step 13
- REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE NO. 6 CONSOLE BOX RETAINER
See step 16
- REMOVE NO. 1 FRONT CONSOLE BOX INSERT
See step 17
- REMOVE NO. 2 FRONT CONSOLE BOX INSERT
HINT:
Use the same procedure as for the No. 1 side.
- REMOVE NO. 2 CONSOLE BOX DUCT
See step 19
- REMOVE NO. 1 CONSOLE BOX DUCT
See step 20
- REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
See step 21
- REMOVE NO. 4 CONSOLE BOX DUCT
See step 22
- REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
See step 23
- REMOVE LOWER INSTRUMENT PANEL ASSEMBLY
- Remove the 2 clips.
- Remove the 2 bolts <B> and 10 screws <G>.
- Disconnect the 2 connectors.
- Lift up in the direction shown by the arrow (1) in the illustration to disengage the guides.
Remove in this Direction (1) Remove in this Direction (2) - Pull in the direction shown by the arrow (2) in the illustration to remove the lower instrument panel assembly.
- Remove the 2 clips.
- REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 13
- REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

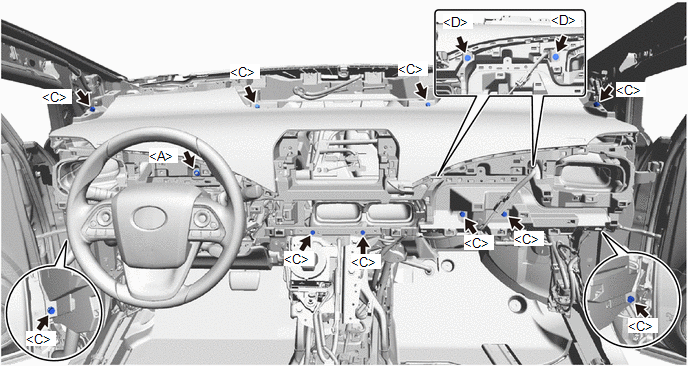

- Remove the 10 bolts <C>, 2 bolts <D> and nut <A>.
- Slide the slider to disconnect the instrument panel wire.
*a Slider - Disconnect the connectors and disengage the clamps.
- Remove the bolt.
- Disengage the guide to disconnect the No. 3 antenna cord sub-assembly.
- Remove the 4 bolts <D>.
- Remove the 2 screws <H>.
- Disengage the guides to disconnect the shift lever with bracket.
- To prevent scratches or damage to the parts during removal, place cloth in the location shown in the illustration.
*a Cloth - Remove the upper instrument panel sub-assembly:
- Remove the 10 bolts <C>, 2 bolts <D> and nut <A>.
