Removal [06/2015 - ]: Procedure

  1. REMOVE STEREO JACK ADAPTER ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE FRONT CONSOLE BOX COVER
    1. Disengage the clips and guides to remove the front console box cover as shown in the illustration.
      GTY549615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
  3. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

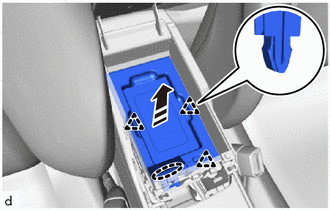

    1. Disengage the clips to remove the mobile wireless charger cradle assembly as shown in the illustration.
      GTY543278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. Disconnect the connector to remove the mobile wireless charger cradle assembly.
      GTY597427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
