Removal [01/2018 - 11/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2015 - ]

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  4. DISCONNECT INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Install the protective tape.
      GTY594408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

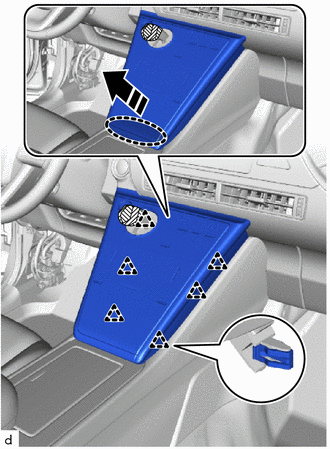

    2. Pull in the direction shown by the arrows in the illustration to disengage the clips and raise up the integration control and panel assembly.
      GTY544604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
      NOTE:

      To avoid damaging the integration control and panel assembly or breaking the clips, do not lift up the integration control and panel assembly too much.

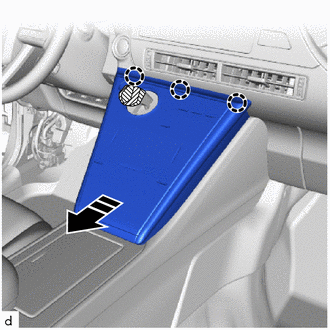

    3. Pull in the direction shown by the arrows in the illustration, disengage the claws, and disconnect the integration control and panel assembly.
      GTY551180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

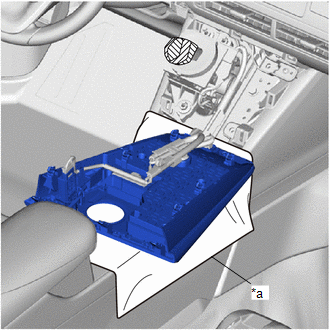

    4. Put the cloth over the front console box, and place the integration control and panel assembly on it.
      GTY888775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cloth
  5. REMOVE INSTRUMENT PANEL CENTER REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 20

  6. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY

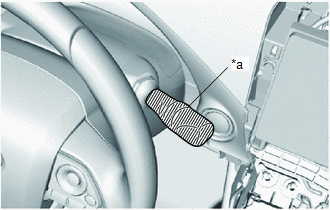

    1. Wrap the windshield wiper switch assembly in protective tape.
      GTY854893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

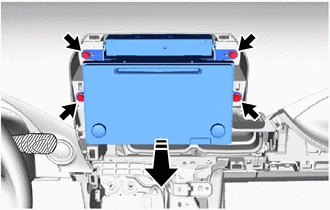

    2. Remove the 4 bolts.
      GTY853626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Pull in the direction shown by the arrow in the illustration, and pull out the radio receiver assembly.
    4. Disconnect the connectors to remove the radio receiver assembly.
  7. REMOVE NAVIGATION WIRE

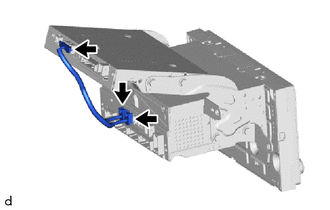

    1. Disconnect the 3 connectors to remove the navigation wire.
      GTY922736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIO RECEIVER BRACKET

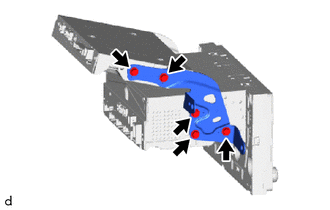

    1. Remove the 5 bolts and the No. 2 radio receiver bracket.
      GTY926292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 RADIO RECEIVER BRACKET

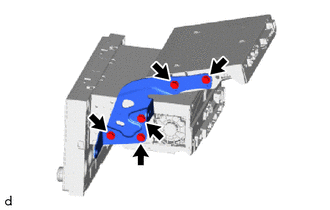

    1. Remove the 5 bolts and the No. 1 radio receiver bracket.
      GTY926290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NAVIGATION COMPUTER ASSEMBLY
    1. Remove the navigation computer assembly.
