Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 10 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 10 [11/2018 - ]

  2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone parts of the front No. 2 speaker assembly.

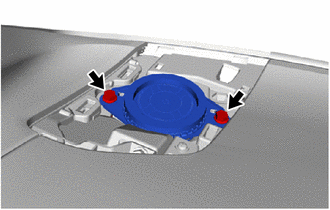

    1. Remove the 2 bolts.
      GTY556761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the front No. 2 speaker assembly.
