Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 5 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 5 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 12 [11/2018 - ]

  3. REMOVE LAP BELT OUTER ANCHOR COVER

    Refer to PROCEDURE - Step 16 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 16 [11/2018 - ]

  4. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 17 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 17 [11/2018 - ]

  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 9 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 9 [11/2018 - ]

  7. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 19 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 19 [11/2018 - ]

  8. REMOVE CENTER PILLAR GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 21 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 21 [11/2018 - ]

  9. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

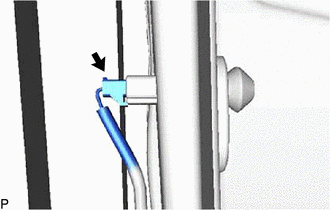

    1. Disconnect the connector.
      GTY582992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

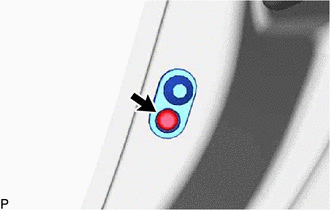

    2. Using a T30 "TORX" socket wrench, remove the screw and front door courtesy light switch assembly.
      GTY582994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
