Removal [06/2015 - 11/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2015 - ]

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      Refer to PROCEDURE - Step 3

      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12

  5. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12

  6. REMOVE LAP BELT OUTER ANCHOR COVER

    Refer to PROCEDURE - Step 16

  7. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 17

  8. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. Separate the front door opening trim weatherstrip.
  9. SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Separate rear door opening trim weatherstrip.
  10. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 19

  11. REMOVE CENTER PILLAR GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 21

  12. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

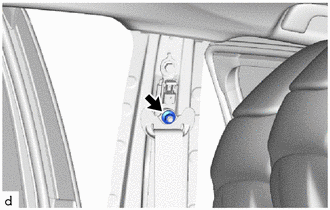

    1. Remove the nut to separate the shoulder anchor of the front seat outer belt assembly.
      GTY539937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

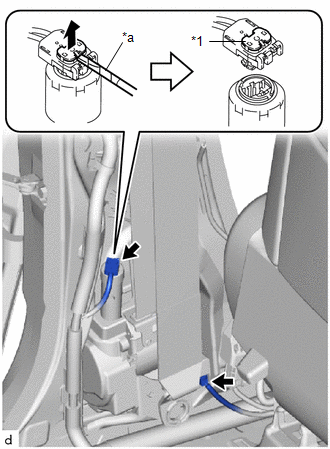

    2. Using a screwdriver with its tip wrapped in protective tape, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.
      GTY581380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Locking Button
      *a Protective Tape
    3. Disconnect the connector.

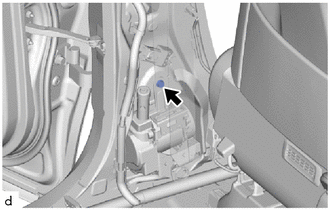

    4. Remove the bolt.
      GTY539913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

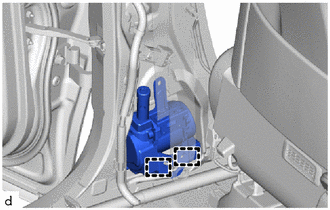

    5. Disengage the guides to remove the front seat outer belt assembly.
      GTY539914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY
    1. Remove the 2 bolts.
      GTY539915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the front shoulder belt anchor plate sub-assembly.
  14. REMOVE FRONT SEAT BELT RETRACTOR COVER

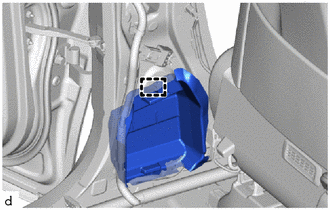

    1. Disengage the guide to remove the front seat belt retractor cover.
      GTY539916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
