Removal [11/2018 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [11/2018 - ]

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  4. REMOVE FRONT CONSOLE BOX

    Refer to REMOVAL [11/2018 - ]

  5. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    See step  9

  6. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedure as for the No. 1 side.

  7. REMOVE NO. 1 INSTRUMENT PANEL CUSHION

    See step  12

  8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  9. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE FRONT PILLAR GARNISH LH

    See step  15

  11. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the claws and guide to remove the rear door scuff plate LH as shown in the illustration.
      GTY600445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 2

  15. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE LAP BELT OUTER ANCHOR COVER

    HINT:

    Use the same procedures for the opposite side.

    1. Disengage the claws and guide to remove the lap belt outer anchor cover as shown in the illustration.
      GTY559061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt to disconnect the front seat outer belt assembly LH.
      GTY605249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the claws and clips to remove the center pillar lower garnish LH as shown in the illustration.
      GTY572186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  20. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH
    1. Remove the screw.
      GTY573251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clips as shown in the illustration.
      GTY606576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    3. Disengage the clip to remove the center pillar garnish assembly LH as shown in the illustration.
      GTY585394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  22. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the claw and guide to remove the rear seat side garnish LH as shown in the illustration.
      GTY591595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  24. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  25. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the clips as shown in the illustration.
      GTY539703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the guides to remove the roof side inner garnish assembly LH as shown in the illustration.
      GTY545517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  27. REMOVE PROTECTOR

    Refer to PROCEDURE - Step 1

  28. REMOVE RAIN SENSOR COVER

    Refer to PROCEDURE - Step 1

  29. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1

  30. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2

  31. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  32. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  33. REMOVE ASSIST GRIP COVER

    HINT:

    Use the same procedures for all assist grip sub-assemblies.

    1. Insert SST into the cutout of the assist grip cover as shown in the illustration.
      • SST: 09813-00010
      GTY848413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

    2. Pull SST as shown in the illustration to disengage the claw.
      GTY929574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

    3. Remove the assist grip cover.

      HINT:

      Use the same procedures for the opposite side.

  34. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedures for the all assist grip assemblies.

    1. Disengage the clips to remove the assist grip sub-assembly.
      GTY605247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips from the body.
  35. REMOVE VISOR BRACKET COVER LH
    1. Disengage the claws to remove the visor bracket cover LH as shown in the illustration.
      GTY597048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  36. REMOVE VISOR BRACKET COVER RH

    HINT:

    Use the same procedure as for the LH side.

  37. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws.
      GTY573236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the visor assembly LH as shown in the illustration.
      GTY573240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE VISOR HOLDER LH
    1. Turn the visor holder clockwise approximately 45° and pull it out as shown in the illustration.
      GTY453572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claws to remove the visor holder LH.
  40. REMOVE VISOR HOLDER RH

    HINT:

    Use the same procedure as for the LH side.

  41. REMOVE VANITY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  42. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the 2 connectors.
      GTY541474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamps.

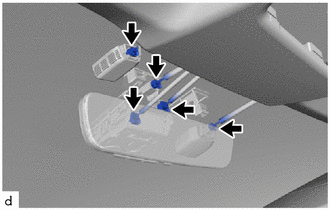

    3. Disconnect the 5 connectors.
      GTY863199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

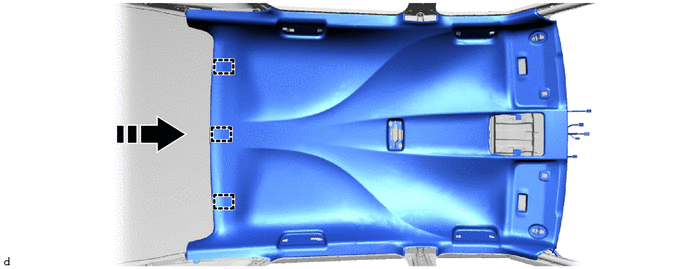

    4. Disengage the guides as shown in the illustration.
      GTY940323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    5. As shown in the illustration, tilt the roof headlining assembly, and while bending it slightly, remove it from the vehicle through the rear door.
      NOTE:

      Remove the roof headlining assembly without wrinkling it.

      GTY573239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 3 clips from the body.
