Removal [08/2017 - 08/2019]: Procedure

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2017 - 08/2019] ).

  3. CUSTOMIZE INFORMATION
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Utility / Customize Setting / Tilt & Telescopic.
    5. Turn the auto away/return function OFF.
    6. Turn the ignition switch to ACC.
    7. Operate the tilt and telescopic switch to fully raise the tilt and extend the steering wheel.
    8. Turn the ignition switch OFF.
  4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected. Refer to

    INITIALIZATION [08/2017 - 08/2018] , or refer to

    INITIALIZATION [08/2018 - 08/2019]

  5. REMOVE LOWER NO. 3 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 3

  6. REMOVE LOWER NO. 2 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 4

  7. REMOVE STEERING PAD

    Refer to PROCEDURE - Step 5

  8. REMOVE STEERING WHEEL ASSEMBLY

    See step  6

  9. REMOVE LOWER STEERING COLUMN COVER

    See step  8

  10. REMOVE UPPER STEERING COLUMN COVER

    See step  9

  11. REMOVE TILT AND TELESCOPIC MANUAL SWITCH
    1. Disconnect the connector.
      GTY611511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw and pull out the tilt and telescopic switch.
      NOTE:

      Pushing on the claw too hard will break the claw.

      HINT:

      Tape the screwdriver tip before use.

  12. REMOVE COMBINATION SWITCH WITH SPIRAL CABLE

    See step  10

  13. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  14. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14

  15. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to

    PROCEDURE - Step 15 [08/2017 - 08/2018] , or refer to

    PROCEDURE - Step 15 [08/2018 - 08/2019]

  16. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  17. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to

    PROCEDURE - Step 17 [08/2017 - 08/2018] , or refer to

    PROCEDURE - Step 17 [08/2018 - 08/2019]

  18. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  19. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY
    1. Remove the bolt and No. 3 air duct sub-assembly.
      GTY758663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the 3 bolts and nut.
      GTY575530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put matchmarks on the steering intermediate shaft and the steering column.
      GTY577829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    3. Remove the bolt and steering intermediate shaft from the steering column.

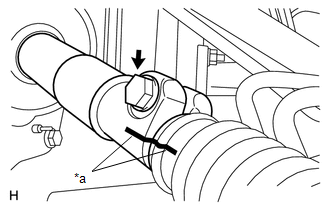

    4. Put matchmarks on the No. 2 steering intermediate shaft and steering intermediate shaft.
      GTY561023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    5. Remove the bolt.
    6. Separate the steering intermediate shaft from the No. 2 steering intermediate shaft.
  21. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY

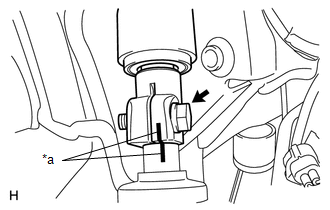

    1. Put matchmarks on the No. 2 steering intermediate shaft and power steering gear.
      GTY568930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the bolt and No. 2 steering intermediate shaft from the power steering gear.
  22. REMOVE STEERING COLUMN ASSEMBLY
    1. Remove the bolt and earth wire.
      GTY763277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and disengage the wire.
    3. Remove the bolt and 2 nuts. Then remove the steering column from the instrument panel reinforcement.
