Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SPARK PLUG
  2. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. INSTALL KNOCK SENSOR

    Refer to PROCEDURE - Step 1

  4. INSTALL CASE SEPARATOR
    1. Install the case separator with the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Install the No. 9 water by-pass hose and No. 10 water by-pass hose to the case separator, and slide the 2 clamps to secure the hoses.

      HINT:

      Make sure that the color on the hose matches the color on the case separator.

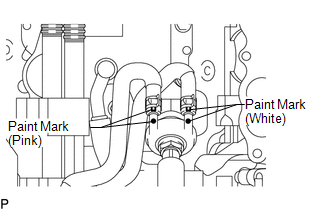

      GTY546276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ENGINE WIRE

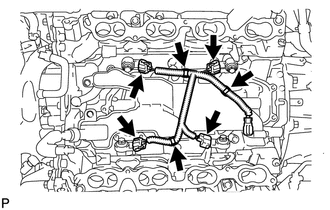

    GTY443118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the 3 clamps and 4 knock sensor connectors.
  6. INSTALL NO. 3 AIR TUBE

    Refer to PROCEDURE - Step 1

  7. INSTALL NO. 2 AIR TUBE

    Refer to PROCEDURE - Step 2

  8. INSTALL AIR SWITCHING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 3

  9. INSTALL WATER INLET HOUSING

    Refer to PROCEDURE - Step 3

  10. INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL NO. 1 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  12. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  13. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  14. INSTALL AIR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  15. INSTALL NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 12

  16. INSTALL NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 14

  17. INSTALL FRONT WATER BY-PASS JOINT

    Refer to PROCEDURE - Step 15

  18. INSTALL NO. 1 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 21

  19. INSTALL WATER BY-PASS PIPE HOSE

    Refer to PROCEDURE - Step 5

  20. INSTALL FUEL TUBE SUB-ASSEMBLY

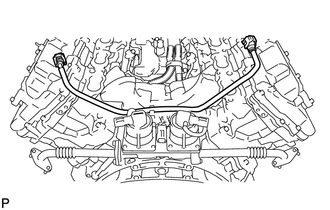

    GTY587690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the fuel tube.
  21. INSTALL NO. 2 FUEL TUBE SUB-ASSEMBLY

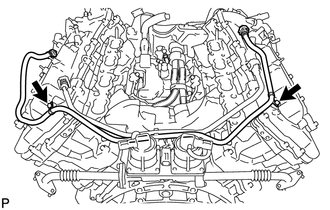

    GTY587689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 2 fuel tube with the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  22. INSTALL INTAKE MANIFOLD

    Refer to PROCEDURE - Step 9

  23. INSTALL NO. 1 HOSE TO HOSE TUBE
    1. Install the No. 1 tube with the 2 bolts.

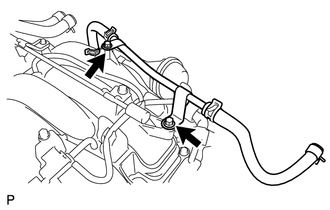

      GTY587475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.2 N.m (84 kgf/cm, 73 in.lbf)

  24. INSTALL VENTILATION HOSE ASSEMBLY

    Refer to PROCEDURE - Step 12

  25. INSTALL NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  26. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  27. CONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  28. CONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  29. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  30. INSTALL NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 10

  31. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH

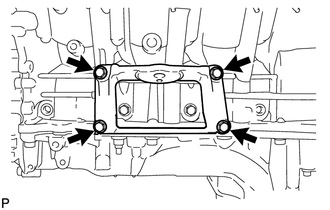

    GTY581055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the mounting bracket with the 4 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  32. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH

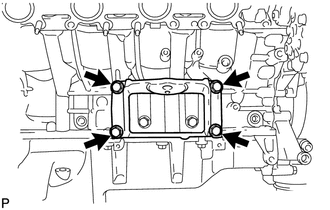

    GTY607016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the mounting bracket with the 4 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  33. INSTALL FRONT ENGINE MOUNTING INSULATOR LH
    1. Install the mounting insulator with the nut.

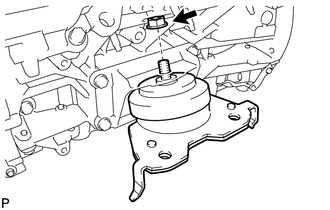

      GTY610744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

  34. INSTALL FRONT ENGINE MOUNTING INSULATOR
    1. Install the mounting insulator with the nut.

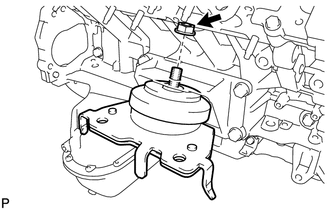

      GTY593842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

  35. INSTALL CYLINDER BLOCK WATER DRAIN COCK PLUG
    GTY463564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply adhesive to 2 or 3 threads of the drain cocks.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

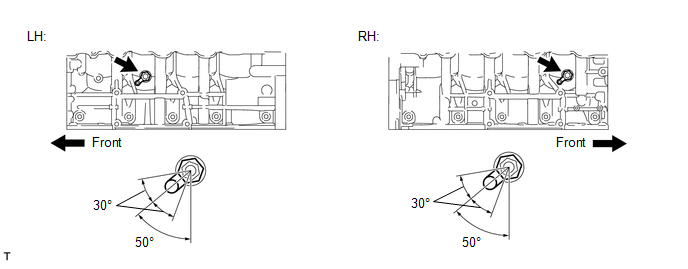

    2. GTY543075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the water drain cocks.

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

    3. Further tighten the drain cocks within 360° so that the drain cock pipes are within the range shown in the illustration.
      NOTE:
      • Do not rotate the drain cocks more than 1 revolution (360°) after tightening the drain cocks to the specified torque.
      • Do not loosen the drain cocks to adjust them. If an adjustment is necessary, remove the drain cocks and reinstall them.
    4. Install the water drain cock plugs to the water drain cocks.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  36. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

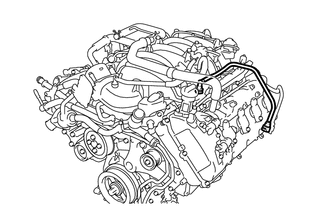

    GTY570336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 1 fuel pipe. Refer to PRECAUTION [08/2015 - 08/2018] .
  37. INSTALL ENGINE WIRE

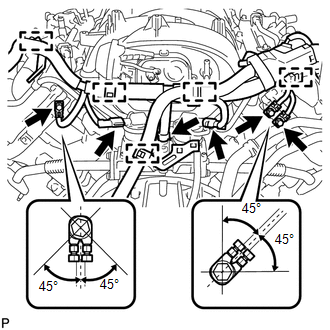

    GTY561356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the engine wire.
    2. Install the 3 bolts as shown in the illustration.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

    3. Connect the 5 clamps.
    4. Connect the 3 connectors.
    5. Connect the 9 clamps.

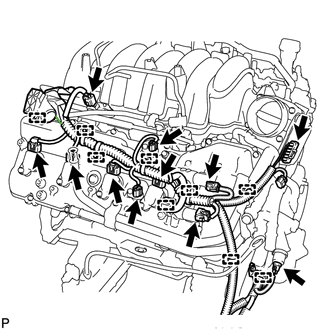

      GTY540856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the oil pressure sender gauge connector.
    7. Connect the throttle sensor connector.
    8. Connect the fuel injector connector.
    9. Connect the 2 VVT sensor connectors.
    10. Connect the 4 ignition coil connectors.
    11. Connect the 2 camshaft timing control valve connectors.
    12. Connect the 8 clamps and install the engine wire with the bolt.

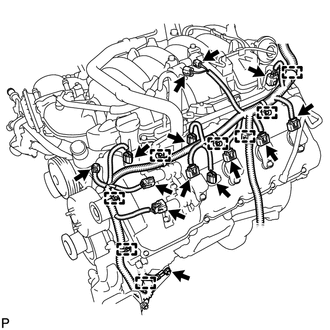

      GTY540878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

    13. Connect the fuel injector connector.
    14. Connect the engine coolant temperature sensor connector.
    15. Connect the purge VSV connector.
    16. Connect the vacuum switching valve connector (for ACIS).
    17. Connect the camshaft position sensor connector.
    18. Connect the 2 VVT sensor connectors.
    19. Connect the 4 ignition coil connectors.
    20. Connect the 2 camshaft timing control valve connector.
