Installation [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK SENSOR
- Install the 4 knock sensor with the 4 bolts so that the knock sensors are angled as shown in the illustration.
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

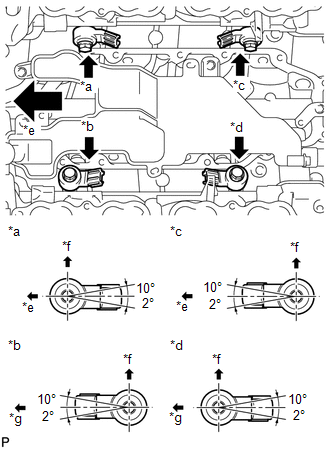

TEXT IN ILLUSTRATION*a Bank 2 Sensor 1 *b Bank 1 Sensor 1 *c Bank 2 Sensor 2 *d Bank 1 Sensor 2 *e Front *f Upper *g Rear NOTE:The acceptable installation angle of the knock sensor is between 10° upward and 2° downward from the horizontal position.
HINT:
Perform "Inspection After Repairs" after replacing the knock sensor (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] ).
- Connect the 4 knock sensor connectors.
- Install the 4 knock sensor with the 4 bolts so that the knock sensors are angled as shown in the illustration.
- INSTALL NO. 1 ENGINE COVER
Refer to PROCEDURE - Step 12
- INSTALL NO. 2 CYLINDER HEAD COVER
Refer to PROCEDURE - Step 14
- INSTALL INTAKE MANIFOLD
(Refer to INSTALLATION [08/2015 - 08/2018] )
