Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY
    1. Apply adhesive to 2 or 3 threads of the oil pressure sender gauge.
      GTY120966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

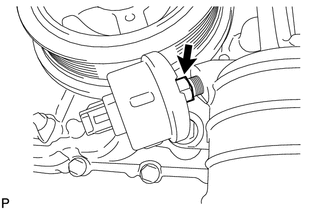

    2. GTY571679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the oil pressure sender gauge.

      Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

      NOTE:

      Do not start the engine within 1 hour after installation.

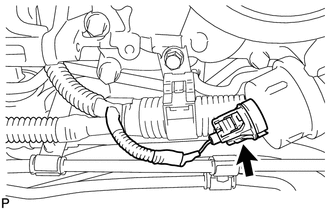

    3. Connect the sender gauge connector.
      GTY593084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  3. INSPECT FOR OIL LEAK

    See step  10

  4. INSTALL NO. 1 ENGINE UNDER COVER

    See step  12
