Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL COOLER SPACER
    1. Apply a light coat of engine oil to a new gasket.
      GTY603077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the gasket to the oil cooler spacer.
    3. Install the oil cooler spacer to the oil filter bracket with the bolt.
      GTY571704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL OIL COOLER ASSEMBLY
    1. Apply a light coat of engine oil to 2 new O-rings.
      GTY571706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 O-rings to the oil cooler.
    3. Install the oil cooler with the 5 nuts.
      GTY610800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  3. INSTALL OIL FILTER BRACKET
    1. Apply a light coat of engine oil to 2 new O-rings.

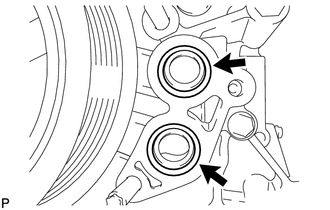

      GTY604897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 O-rings to the timing chain cover.
    3. Install the oil filter bracket with the 2 nuts and 2 bolts.

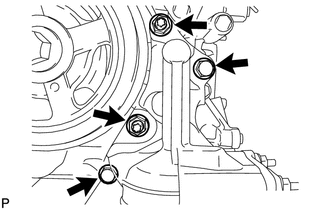

      GTY604891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  4. INSTALL NO. 1 OIL COOLER BRACKET
    1. Connect the ground wire to the cylinder block.

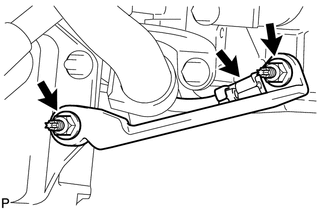

      GTY593094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil cooler bracket with the 2 nuts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  5. INSTALL WATER BY-PASS PIPE HOSE
    1. Connect the 4 hoses.

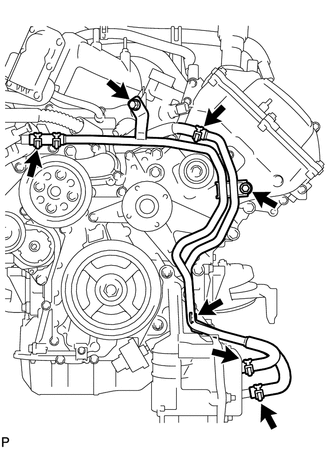

      GTY545961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the water by-pass hose with the 3 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  6. INSTALL COOLER COMPRESSOR ASSEMBLY

    See step  29

  7. INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY

    See step  1

  8. INSTALL OIL FILTER ELEMENT
    1. Install the oil filter element (Refer to REPLACEMENT [08/2015 - 08/2018] ).
  9. INSTALL FAN & GENERATOR V BELT
    1. Install the fan and generator V belt (Refer to INSTALLATION [08/2015 - 08/2018] ).
  10. ADD ENGINE OIL

    See step  9

  11. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  12. INSPECT FOR OIL LEAK

    See step  10

  13. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  14. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1
